The Dynalite Revolution EU is designed for the wall. ControlBase Fit brings it to the user, matched to the exact geometry of the panel.

Key Features

• Glass fibre reinforced composite body - RF transparent, dimensionally stable, does not flex under interaction
• Integrated brass threads - metal-to-metal fixing, rated for repeat-use serviceability across the full product lifecycle
• Weighted base - permanently bonded internal ballast, low centre of gravity. Stable single-handed panel interaction

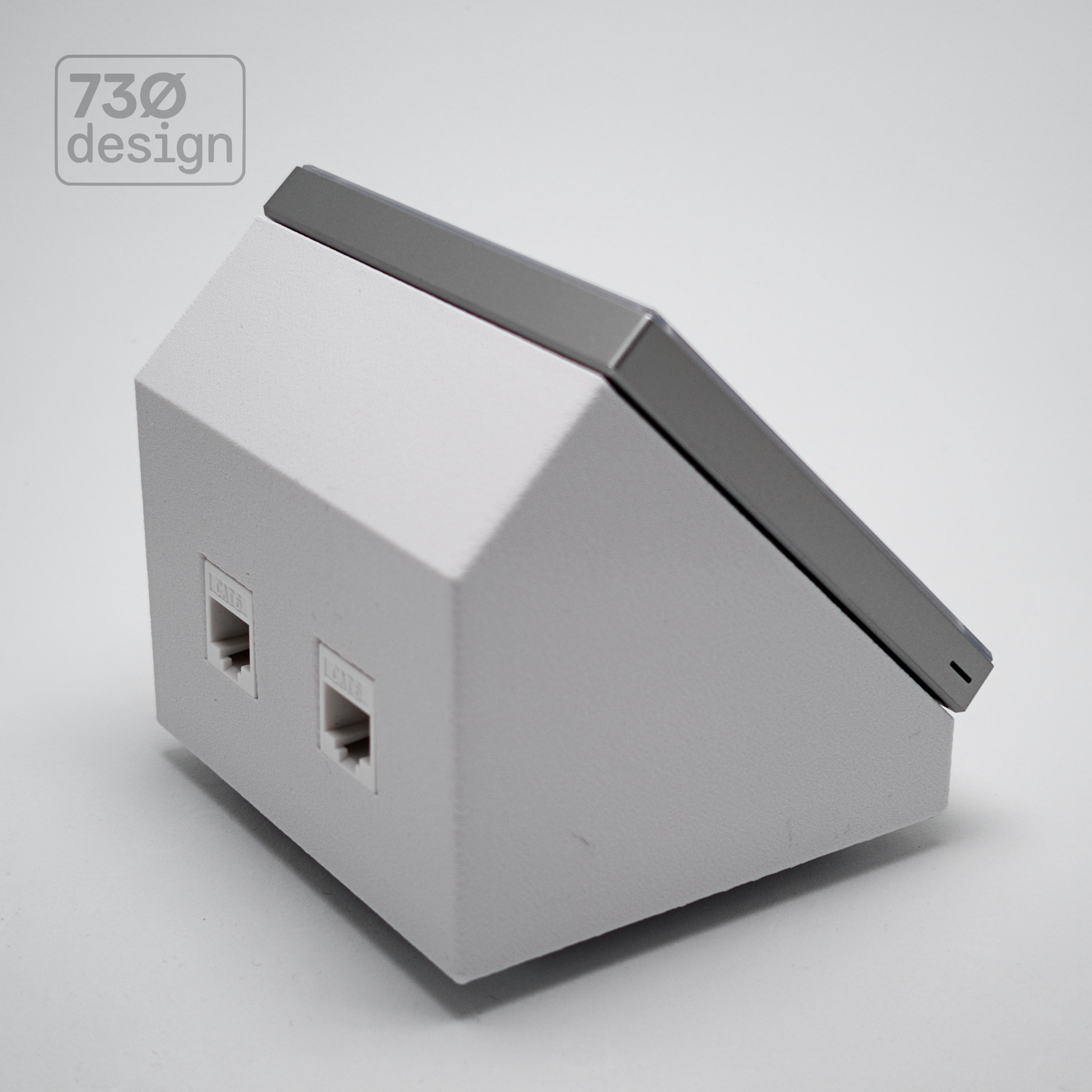

• Keystone backplane - two keystone positions on the rear, compatible with RJ45 Cat6, RJ11 Cat3, 2.1mm DC socket inserts, and cable grommets. One blank and one grommet included
• Replaceable isolation feet - surface protection and vibration isolation on any worktop
• SELV only - for use with Safety Extra-Low Voltage systems only

Finish Palette

ControlBase brackets are manufactured from fibre reinforced engineering composites - materials selected for dimensional stability, surface hardness, and long-term performance in permanent installation environments.

Gallery Finish - Glass Fibre Reinforced Composite
RF transparent throughout. Thermally stable under normal operating conditions. Does not flex under interaction. Finished with a satin clearcoat for a consistent, architectural-grade surface.

• Arctic - a neutral white. Sits cleanly in contemporary residential and commercial interiors.
• Luna - a considered mid-grey. Sits alongside natural materials without competing.

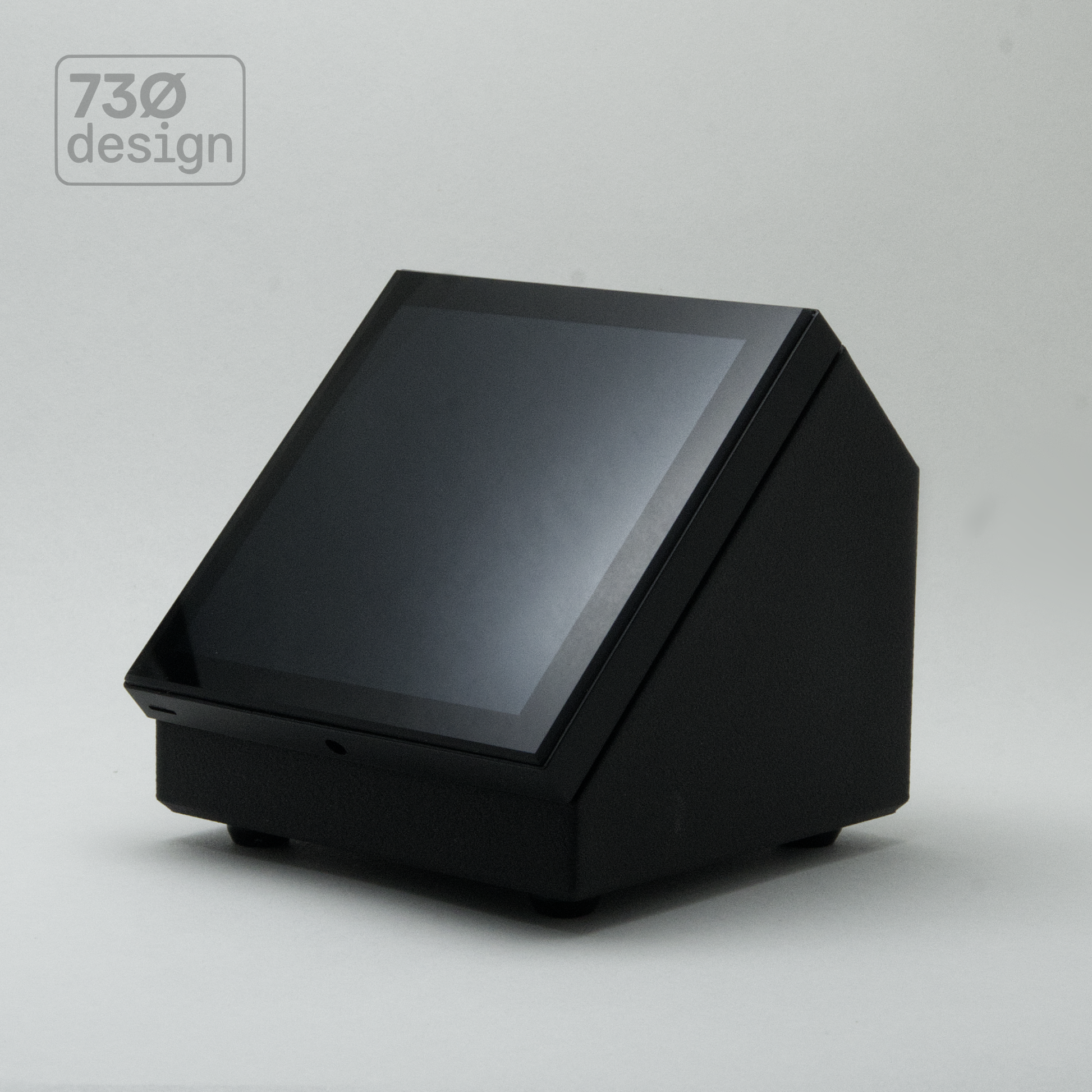

• Obsidian - a deep, low-reflection black. Anchors the panel on any surface.

Core Finish - Carbon Fibre Reinforced Composite
A denser material surface provides greater hardness, abrasion resistance, and resistance to chemical exposure - suited to high-wear environments and technical installations where surface durability is the priority. No clearcoat - the material texture is the finish.

• Anthracite - a dark, matte surface. The material itself is the finish.

Compatible Panels

Listing images show panels for reference - panels are not supplied.

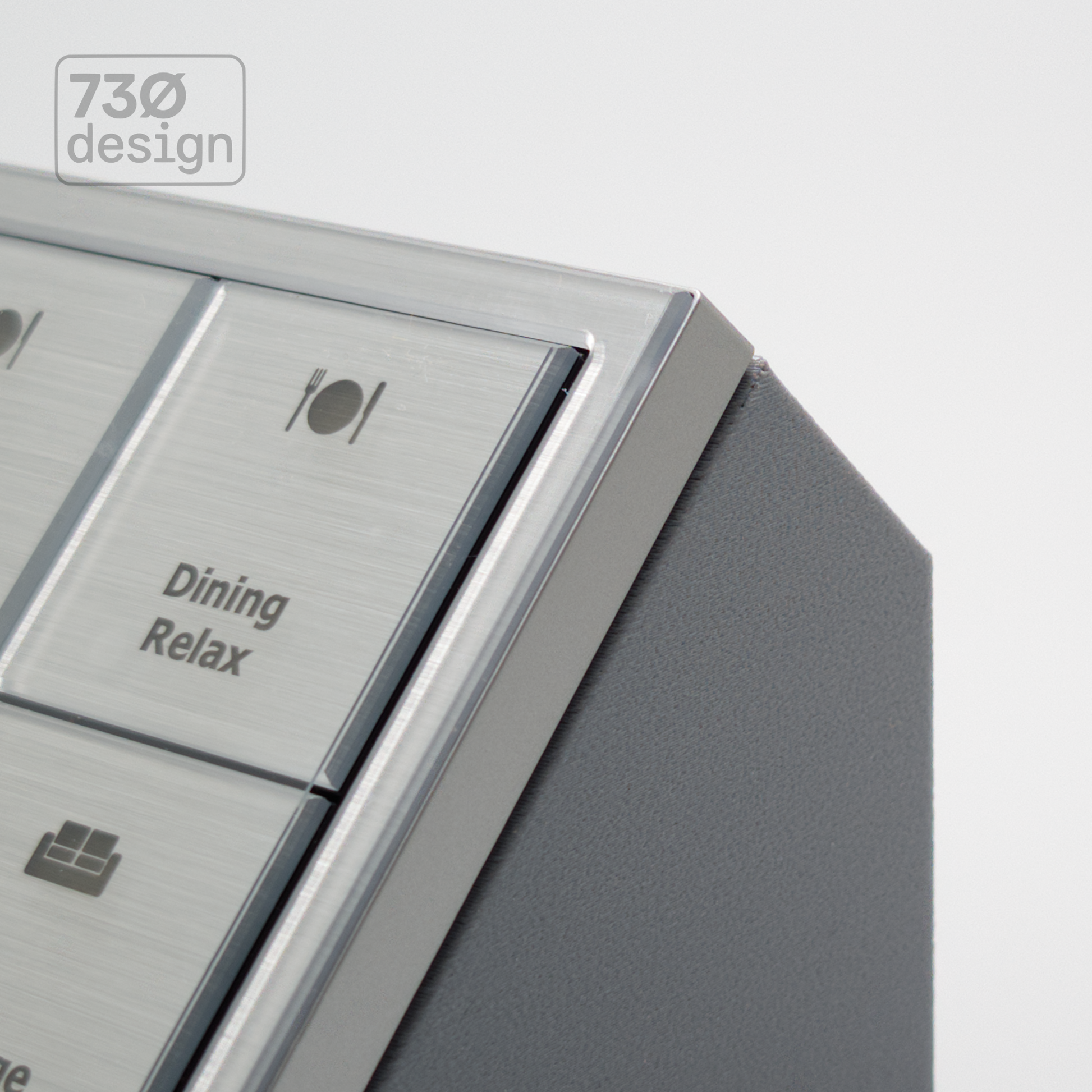

Precision-matched to the Dynalite Revolution EU. Compatible with Revolution EU button panels and Revolution Display EU (PDRDE). The panel mounts via the metal mounting plate supplied with your Revolution panel.

M3.5 fixing screws are supplied as standard. 6-32 UNC thread variants are available on request.

What's Included

1 x ControlBase Fit mounting bracket - Revolution EU
2 x M3.5 steel fixing screws
1 x Material-matched keystone blank
1 x Keystone cable passthrough with grommet

Production

ControlBase is made to order in Melbourne. Each bracket is hand assembled and individually finished. Gallery palette variants - Arctic, Luna, and Obsidian - undergo a 48-hour clearcoat curing window before dispatch.

Other Configurations

Also available in multigang configurations for two and three Revolution EU modules:

• ControlBase | Desktop Mount Designed for Dynalite Revolution Multigang | Double Gang
• ControlBase | Desktop Mount Designed for Dynalite Revolution Multigang | Triple Gang

ControlBase Fit is available as a surface-mount bracket through the ControlSurface range - ControlSurface Fit | Dynalite Revolution EU.

For the same EU square panel in a standard wall cutout, ControlFix provides a front-insertion mounting adapter for 70mm round cutouts - no back box required.

Also in this range:

• ControlSurface Fit | Surface Mount Designed for Dynalite Revolution EU

For thread variants, project-specific requirements, keystone accessories, or lead time enquiries, contact studio@730design.au.

Important Information

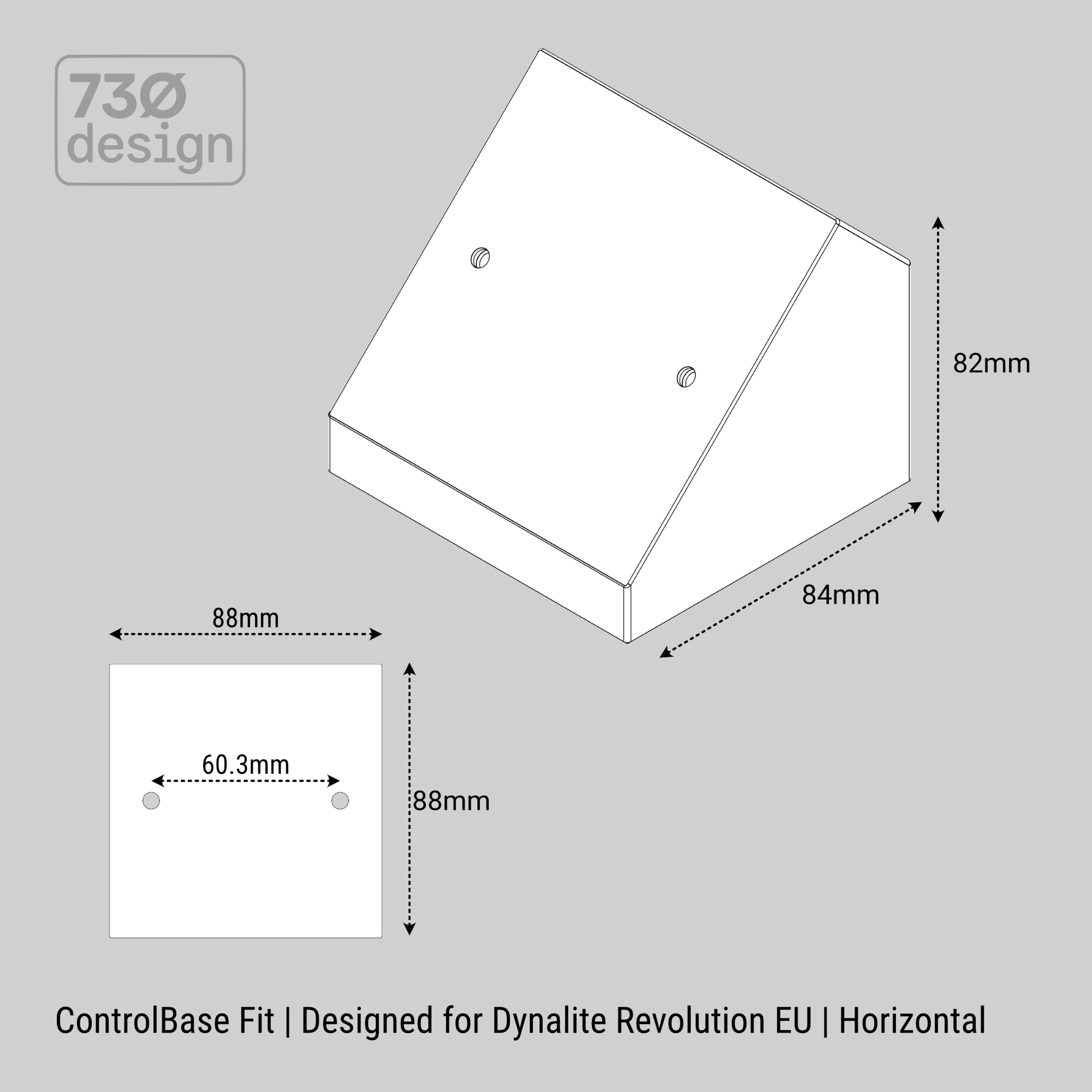

ControlBase is supplied as a third-party accessory component. Compatibility is defined by manufacturer-published panel specifications. Verified dimensional drawings are provided in the product listing - confirm suitability for the intended installation before purchase. Selection, installation, and compliance with applicable standards remain the responsibility of the installer or appointed professional.

For use with SELV (Safety Extra-Low Voltage) systems only. Not an electrical enclosure. Mains power must not be connected to or routed through this product. Panel fixing screws are supplied - install and tighten with hand tools only. Do not use power tools or impact drivers on any fixing point.

730design is not affiliated with or endorsed by Signify or Dynalite. Brand names are used for compatibility identification only.

For full material specifications, engineering standards, and build tolerances, visit 730design.au/pages/materials.

Some imagery on this site uses AI-generated reference material. Refer to specifications for precise installation planning.
