ControlBase Fit | Desktop Mount Designed for Dynalite Revolution Multigang | Triple Gang

ControlBase | Desktop Mount Designed for Dynalite Revolution Multigang | Triple Gang

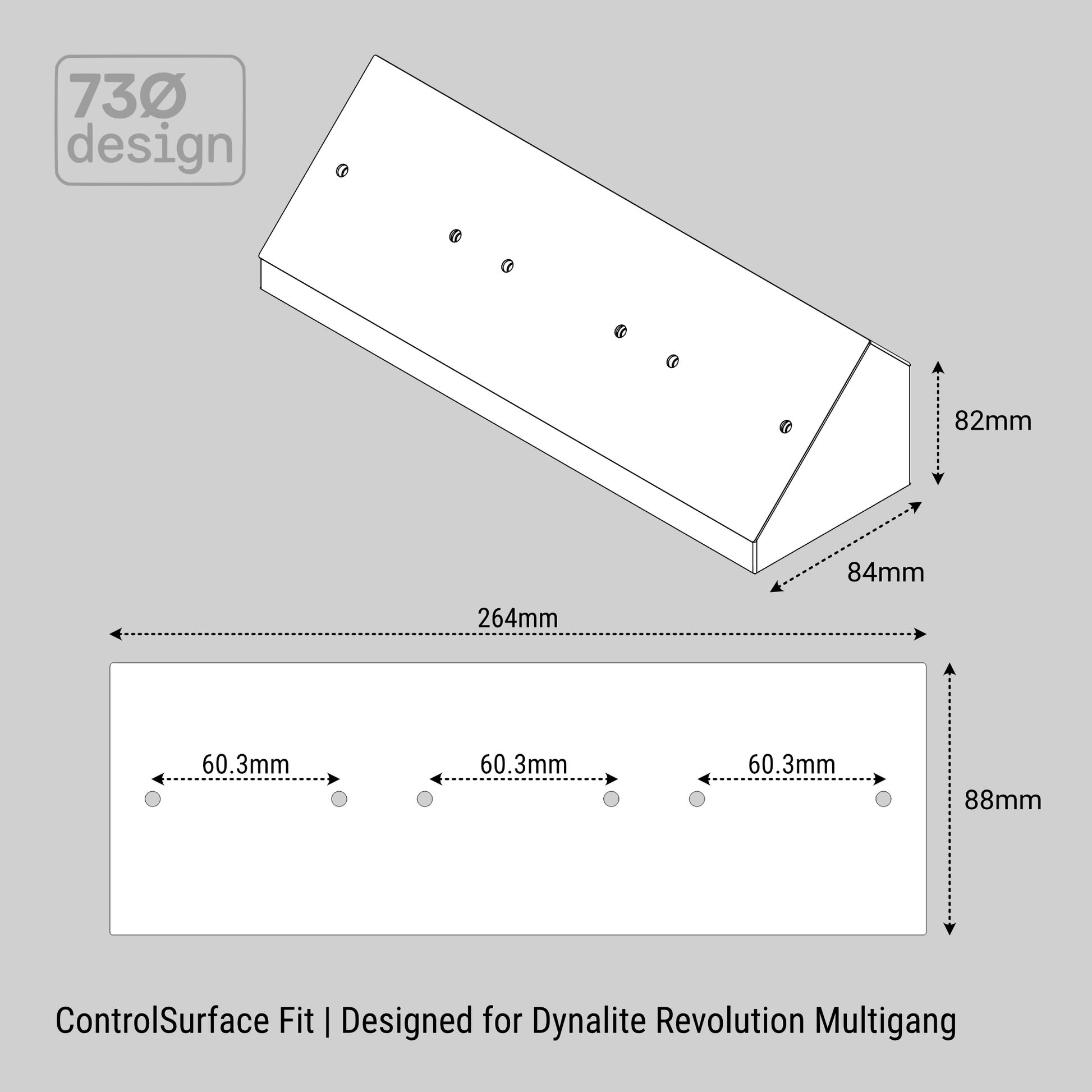

The Dynalite Revolution Multigang Triple Gang frame brings three Revolution EU modules together in a unified format. ControlBase is designed to the exact outer dimensions of the 3-gang Revolution frame - 264 x 88mm - presenting the assembled panel cleanly with no visible gap and no compromise on alignment.

Key Features

• Glass fibre reinforced composite body - RF transparent, dimensionally stable, does not flex under interaction
• Integrated brass threads - metal-to-metal fixing, rated for repeat-use serviceability across the full product lifecycle
• Weighted base - permanently bonded internal steel ballast, low centre of gravity. Stable single-handed panel interaction
• Keystone backplane - two keystone positions on the rear, compatible with RJ45 Cat6, RJ11 Cat3, 2.1mm DC socket inserts, and cable grommets. One blank and one grommet included
• Replaceable isolation feet - surface protection and vibration isolation on any worktop
• SELV only - for use with Safety Extra-Low Voltage systems only

Finish Palette

ControlBase brackets are manufactured from fibre reinforced engineering composites - materials selected for dimensional stability, surface hardness, and long-term performance in permanent installation environments.

Gallery Finish - Glass Fibre Reinforced Composite
RF transparent throughout. Thermally stable under normal operating conditions. Does not flex under interaction. Finished with a satin clearcoat for a consistent, architectural-grade surface.

• Arctic - a neutral white. Sits cleanly in contemporary residential and commercial interiors.
• Luna - a considered mid-grey. Sits alongside natural materials without competing.
• Obsidian - a deep, low-reflection black. Anchors the panel on any surface.

Core Finish - Carbon Fibre Reinforced Composite
A denser material surface provides greater hardness, abrasion resistance, and resistance to chemical exposure - suited to high-wear environments and technical installations where surface durability is the priority. No clearcoat - the material texture is the finish.

• Anthracite - a dark, matte surface. The material itself is the finish.

Compatible Panels

Listing images show panels for reference - panels are not supplied.

Designed to Dynalite manufacturer-published specifications for the Revolution Multigang Triple Gang frame. Compatible with Revolution EU Button and Display module combinations.

Refer to Dynalite manufacturer documentation to confirm your specific frame configuration and module combination.

M3.5 fixing screws are supplied as standard. 6-32 UNC thread variants are available on request.

What's Included

1 x ControlBase mounting bracket - Revolution EU Triple Gang
6 x M3.5 steel fixing screws
1 x Material-matched keystone blank
1 x Keystone cable passthrough with grommet

Production

ControlBase is made to order in Melbourne. Each bracket is hand assembled and individually finished. Gallery palette variants - Arctic, Luna, and Obsidian - undergo a 48-hour clearcoat curing window before dispatch.

Other Configurations

Also available as a Double Gang configuration - ControlBase | Desktop Mount Designed for Dynalite Revolution Multigang | Double Gang.

For the single gang Revolution EU, see ControlBase Fit | Dynalite Revolution EU.

ControlBase is available as a surface-mount bracket through the ControlSurface range - ControlSurface | Surface Mount Designed for Dynalite Revolution Multigang | Triple Gang.

For thread variants, project-specific requirements, keystone accessories, or lead time enquiries, contact studio@730design.au.

Important Information

ControlBase is supplied as a third-party accessory component. Compatibility is defined by manufacturer-published panel specifications. Verified dimensional drawings are provided in the product listing - confirm suitability for the intended installation before purchase. Selection, installation, and compliance with applicable standards remain the responsibility of the installer or appointed professional.

For use with SELV (Safety Extra-Low Voltage) systems only. Not an electrical enclosure. Mains power must not be connected to or routed through this product. Panel fixing screws are supplied - install and tighten with hand tools only. Do not use power tools or impact drivers on any fixing point.

730design is not affiliated with or endorsed by Signify or Dynalite. Brand names are used for compatibility identification only.

For full material specifications, engineering standards, and build tolerances, visit 730design.au/pages/materials.

Some imagery on this site uses AI-generated reference material. Refer to specifications for precise installation planning.
