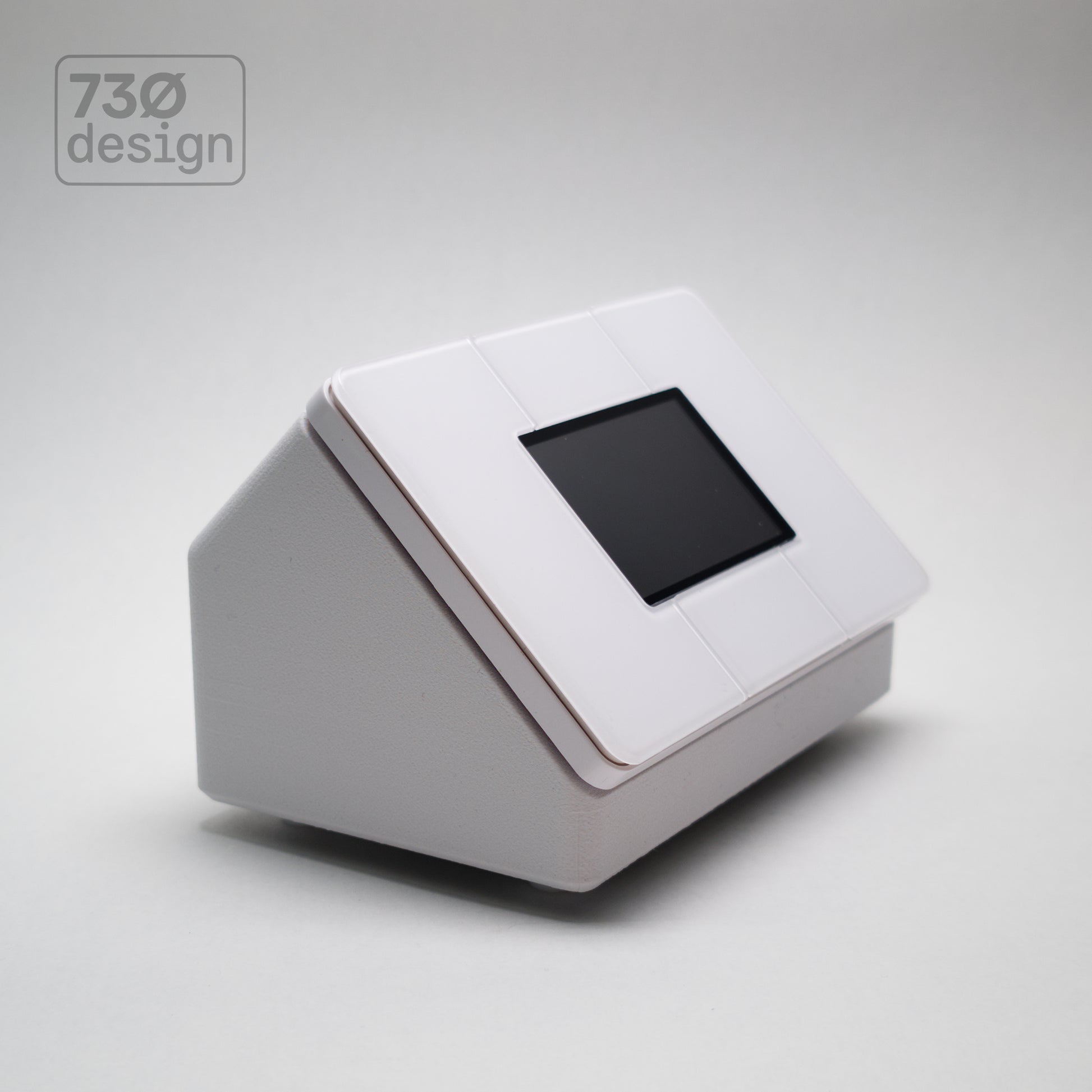

The Dynalite Antumbra NA is designed for the wall. ControlBase Fit brings it to the user, matched to the exact geometry of the panel.

Key Features

• Glass fibre reinforced composite body - RF transparent, dimensionally stable, does not flex under interaction
• Integrated brass threads - metal-to-metal fixing, rated for repeat-use serviceability across the full product lifecycle
• Weighted base - permanently bonded internal ballast, low centre of gravity. Stable single-handed panel interaction

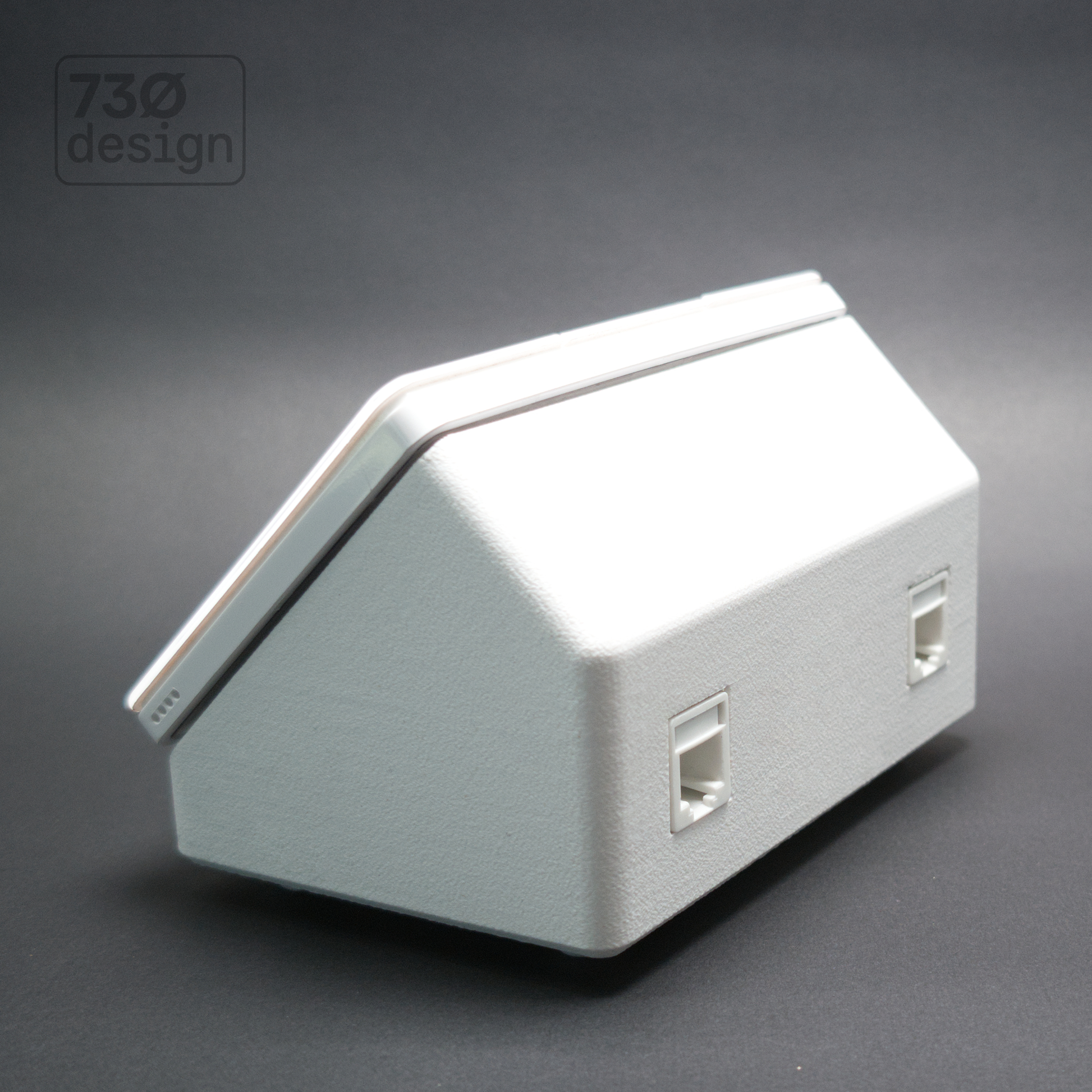

• Keystone backplane - two keystone positions on the rear, compatible with RJ45 Cat6, RJ11 Cat3, DC socket, cable grommets, and material-matched blanks. One blank and one grommet included
• Replaceable isolation feet - high-friction contact on any worktop or surface
• SELV only - for use with Safety Extra-Low Voltage systems only

Finish Palette

ControlBase brackets are manufactured from fibre reinforced engineering composites - materials selected for dimensional stability, surface hardness, and long-term performance in permanent installation environments.

Gallery Finish - Glass Fibre Reinforced Composite
RF transparent throughout. Thermally stable under normal operating conditions. Does not flex under interaction. Finished with a satin clearcoat for a consistent, architectural-grade surface.

• Arctic - a neutral white. Sits cleanly in contemporary residential and commercial interiors.
• Luna - a considered mid-grey. Sits alongside natural materials without competing.
• Obsidian - a deep, low-reflection black. Anchors the panel on any surface.

Core Finish - Carbon Fibre Reinforced Composite
A denser material surface provides greater hardness, abrasion resistance, and resistance to chemical exposure - suited to high-wear environments and technical installations where surface durability is the priority. No clearcoat - the material texture is the finish.

• Anthracite - a dark, matte surface. The material itself is the finish.

Compatible Integrated Control Panels

Listing images show panels for reference - panels are not supplied.

Precision-matched to the Dynalite Antumbra NA. Compatible with all Antumbra NA panel variants:

• DADPA - Antumbra Display (colour)
• PADPA - Antumbra Display (monochrome)
• PAxBPA - Antumbra Button
• PATPA - Antumbra Touch
• PAxBLA - Antumbra Button Lite

What's Included

1 x ControlBase Fit mounting bracket - Antumbra NA | Landscape
2 x M3.5 steel fixing screws
1 x Material-matched keystone blank
1 x Keystone cable passthrough with grommet

M3.5 fixing screws are supplied as standard. 6-32 UNC thread variants are available on request.

Production

ControlBase is made to order in Melbourne. Each bracket is hand assembled and individually finished. Gallery palette variants - Arctic, Luna, and Obsidian - undergo a 48-hour clearcoat curing window before dispatch.

Other Configurations

ControlBase Fit is available as a surface-mount bracket through the ControlSurface range.

For EU square panel installations in a standard wall cutout, ControlFix provides a front-insertion mounting adapter for 70mm round cutouts - no back box required.

Also in this range:

• ControlBase Fit | Desktop Mount Designed for Dynalite Antumbra NA | Portrait
• ControlSurface Fit | Surface Mount Designed for Dynalite Antumbra NA

For thread variants, project-specific requirements, keystone accessories, or lead time enquiries, contact studio@730design.au.

Important Information

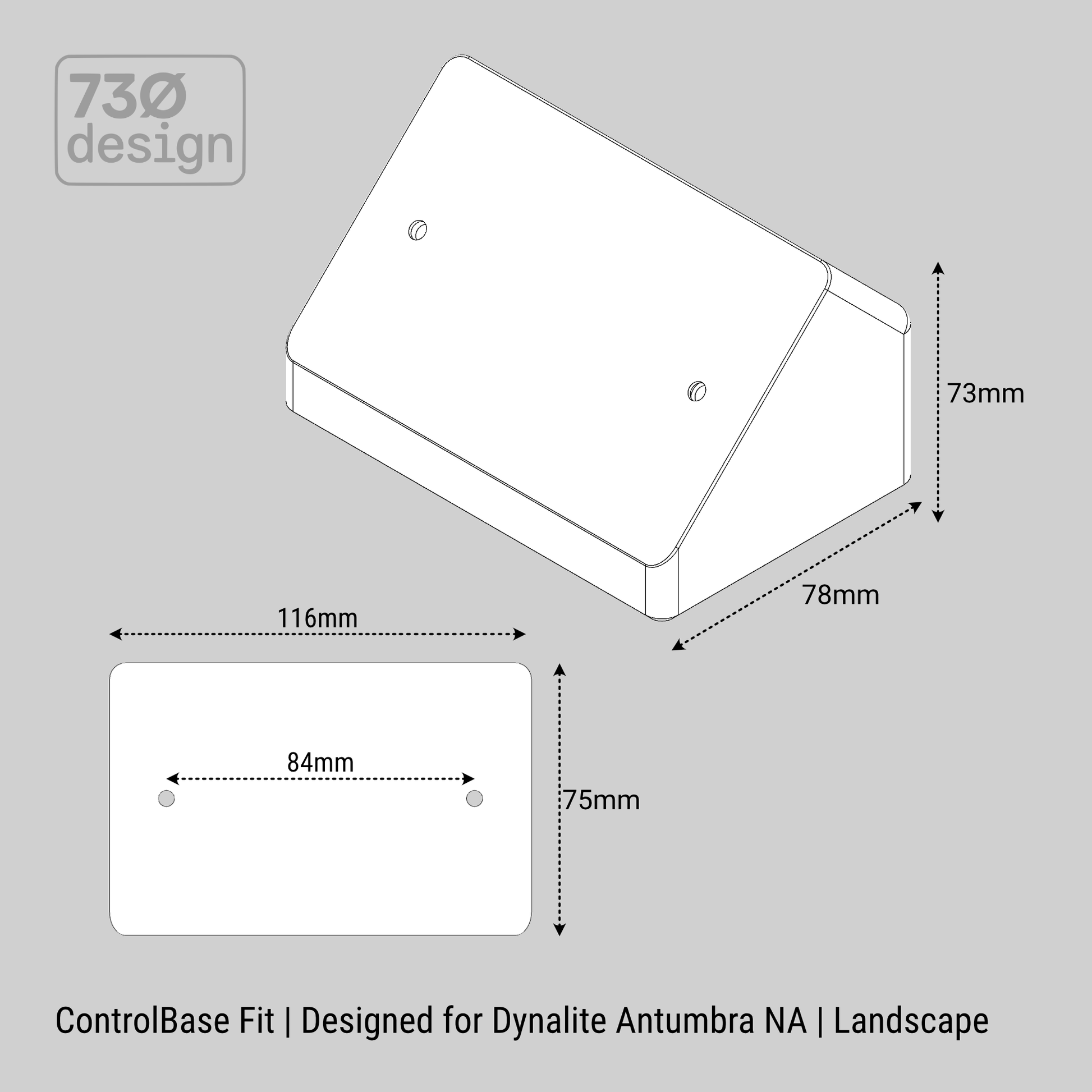

ControlBase Fit is supplied as a third-party accessory component. Compatibility is defined by manufacturer-published panel specifications. Verified dimensional drawings are provided in the product listing - confirm suitability for the intended installation before purchase. Selection, installation, and compliance with applicable standards remain the responsibility of the installer or appointed professional.

For use with SELV (Safety Extra-Low Voltage) systems only. Not an electrical enclosure. Mains power must not be connected to or routed through this product. Panel fixing screws are supplied - install and tighten with hand tools only. Do not use power tools or impact drivers on any fixing point.

For full material specifications, engineering standards, and build tolerances, visit 730design.au/pages/materials.

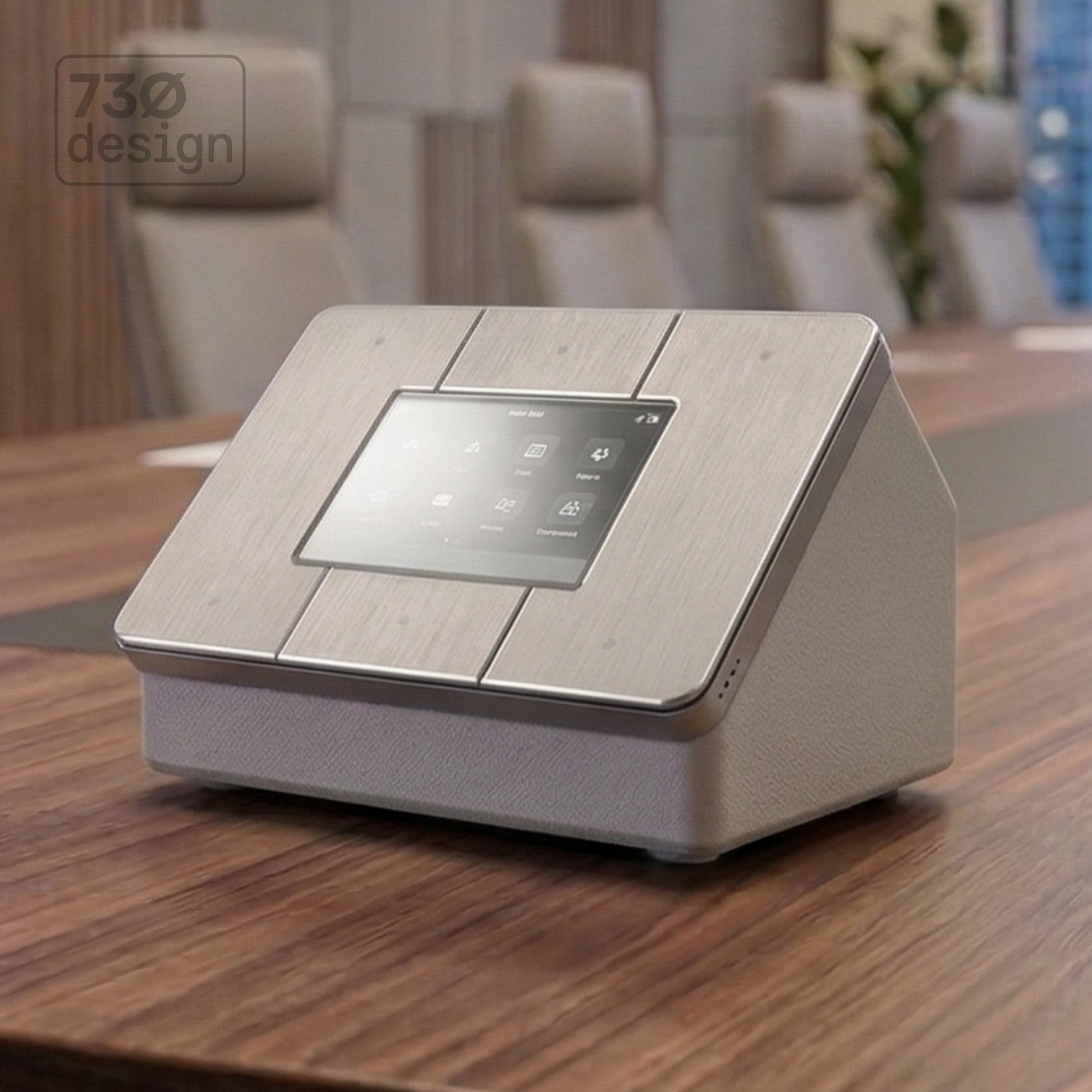

Some imagery on this site uses AI-generated reference material. Refer to specifications for precise installation planning.
