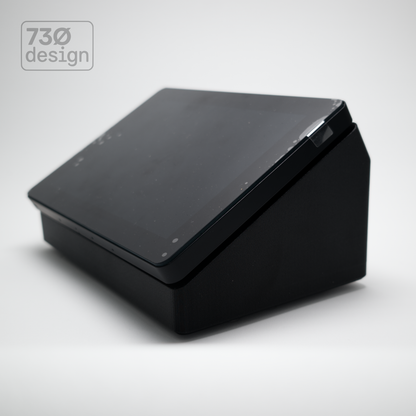

ControlBase Fit | Desktop Mount Designed for Dynalite PDTS Touchscreen

ControlBase Fit | Desktop Mount Designed for Dynalite PDTS Touchscreen

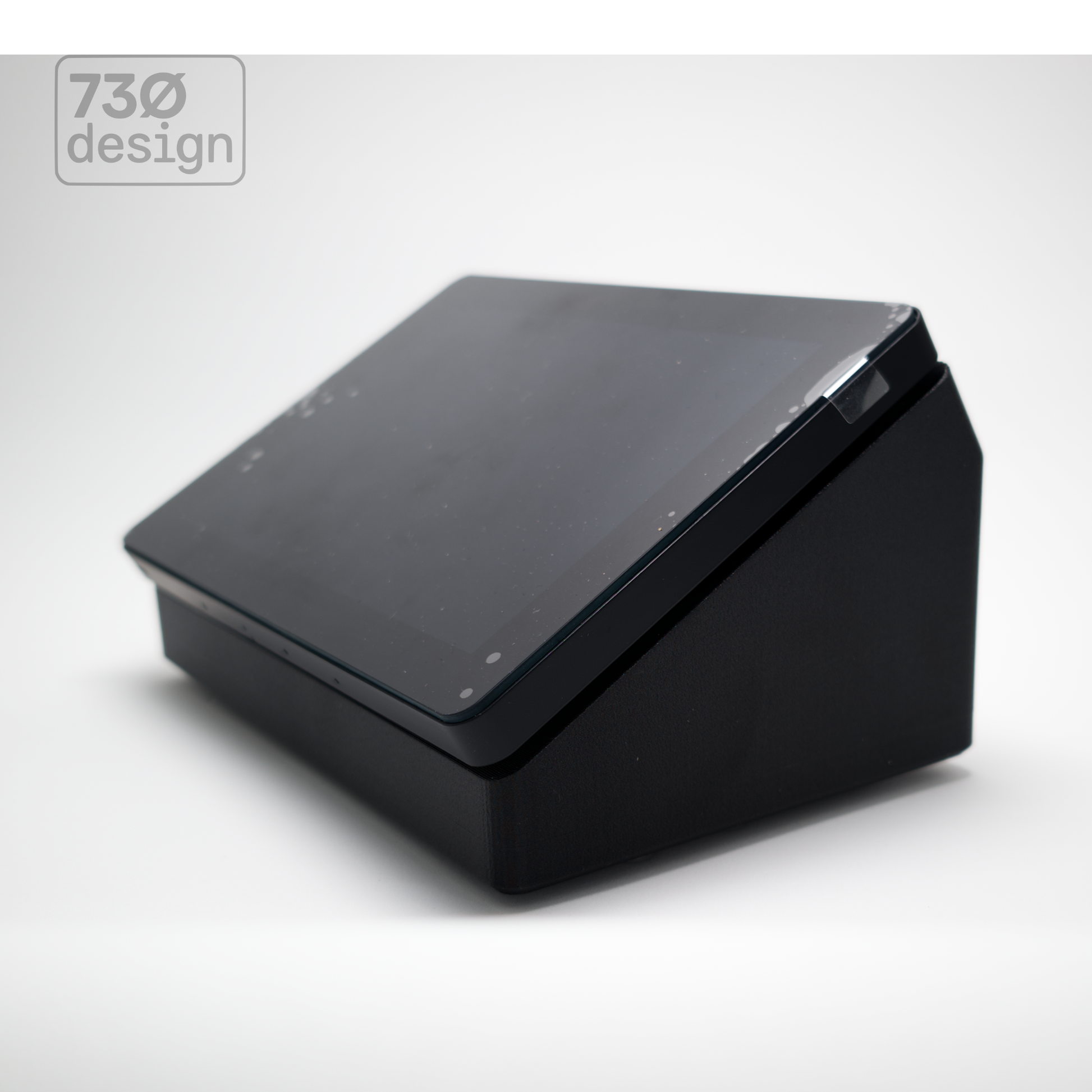

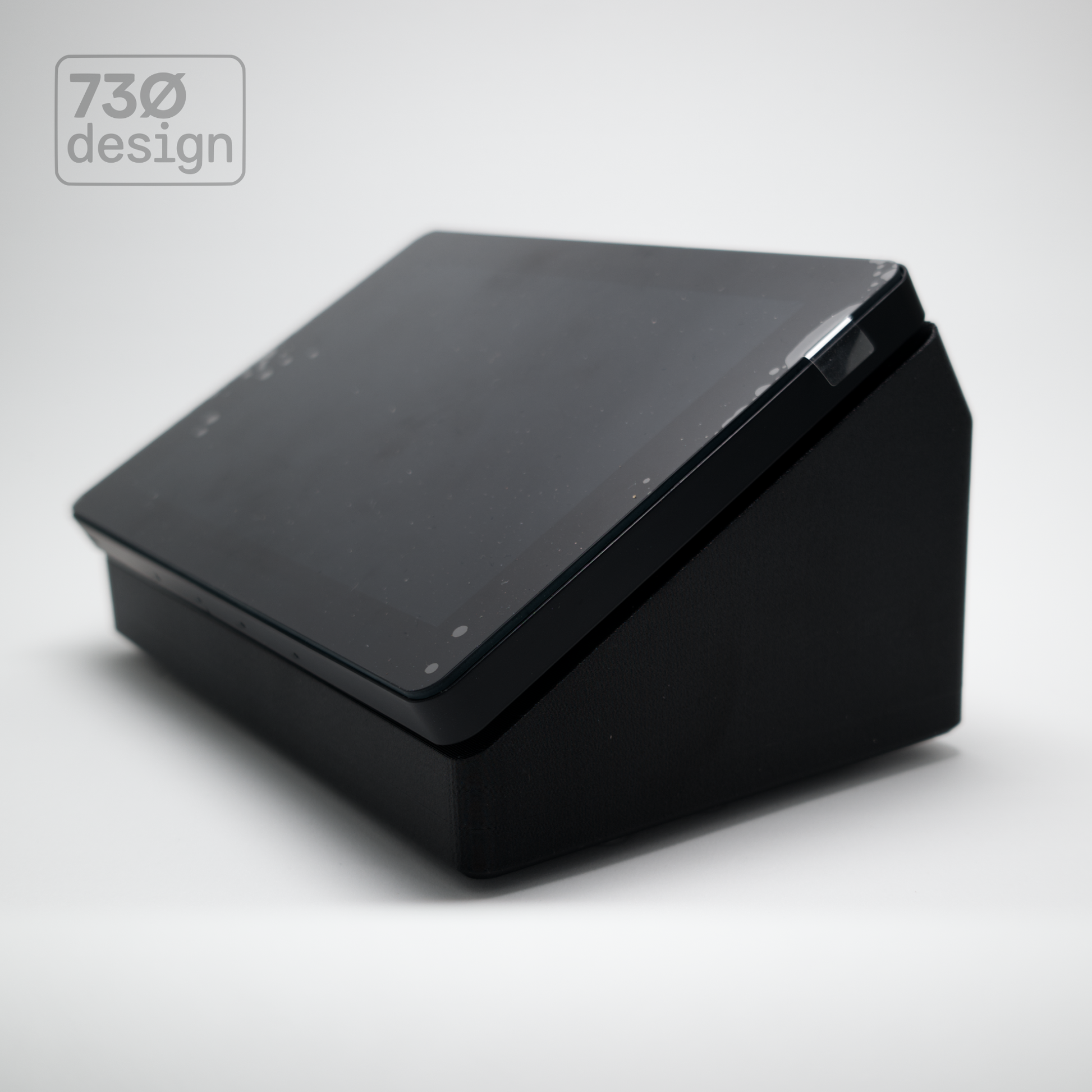

The Dynalite PDTS Touchscreen is designed for the wall. ControlBase Fit brings it to the user, matched to the exact geometry of the panel.

Key Features

• Glass fibre reinforced composite body - RF transparent, dimensionally stable, does not flex under interaction
• Integrated brass threads - metal-to-metal fixing, rated for repeat-use serviceability across the full product lifecycle
• Weighted base - permanently bonded internal ballast, low centre of gravity. Stable single-handed panel interaction

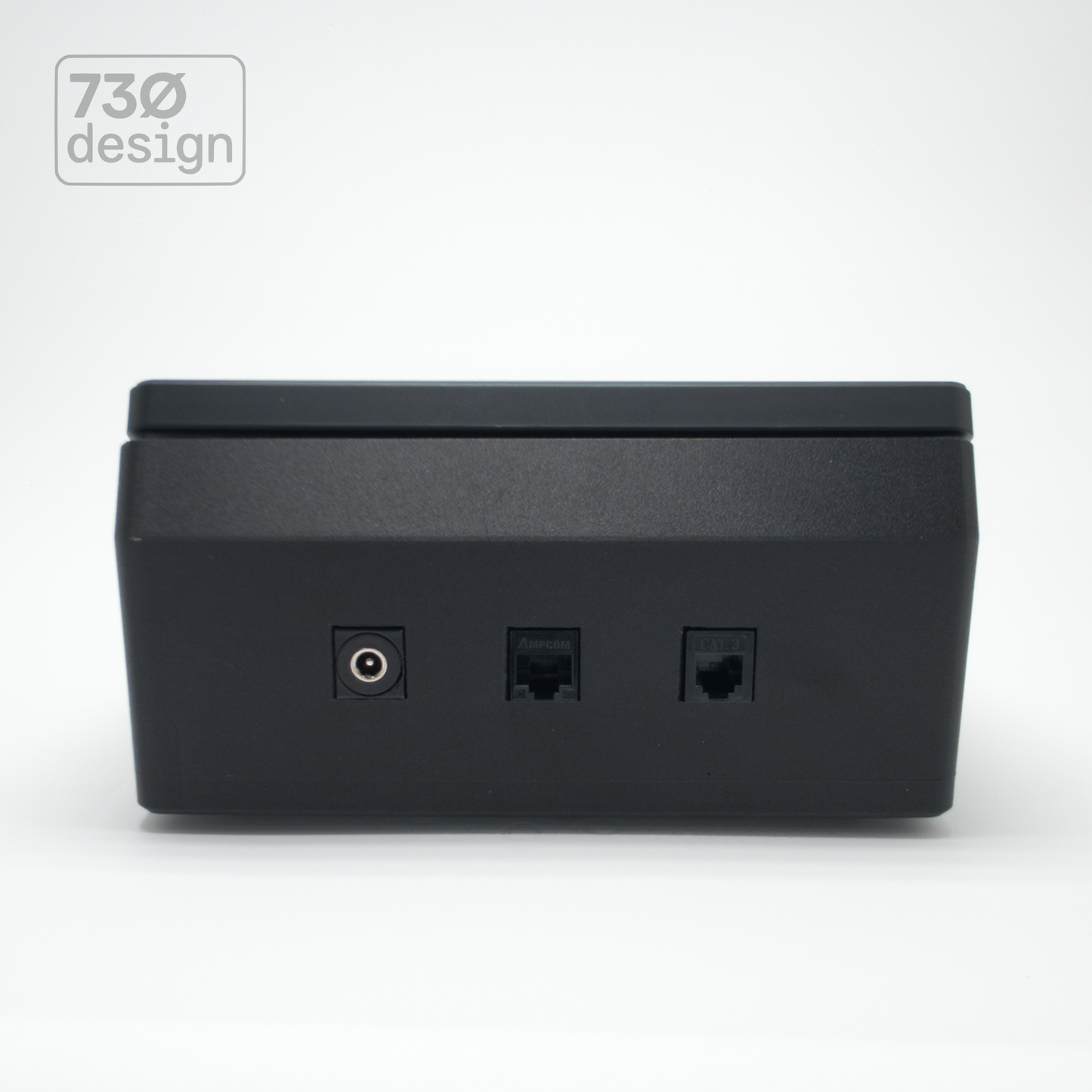

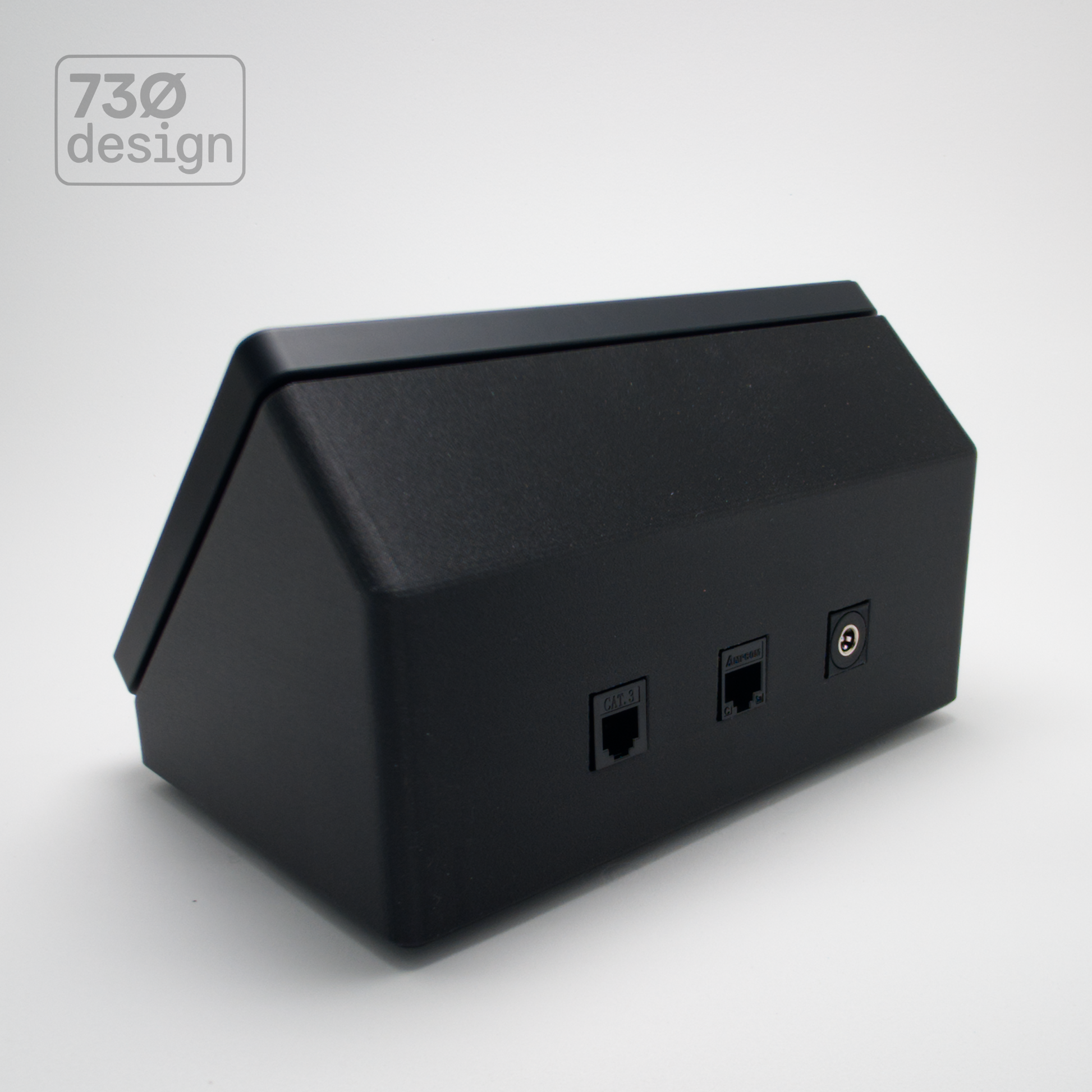

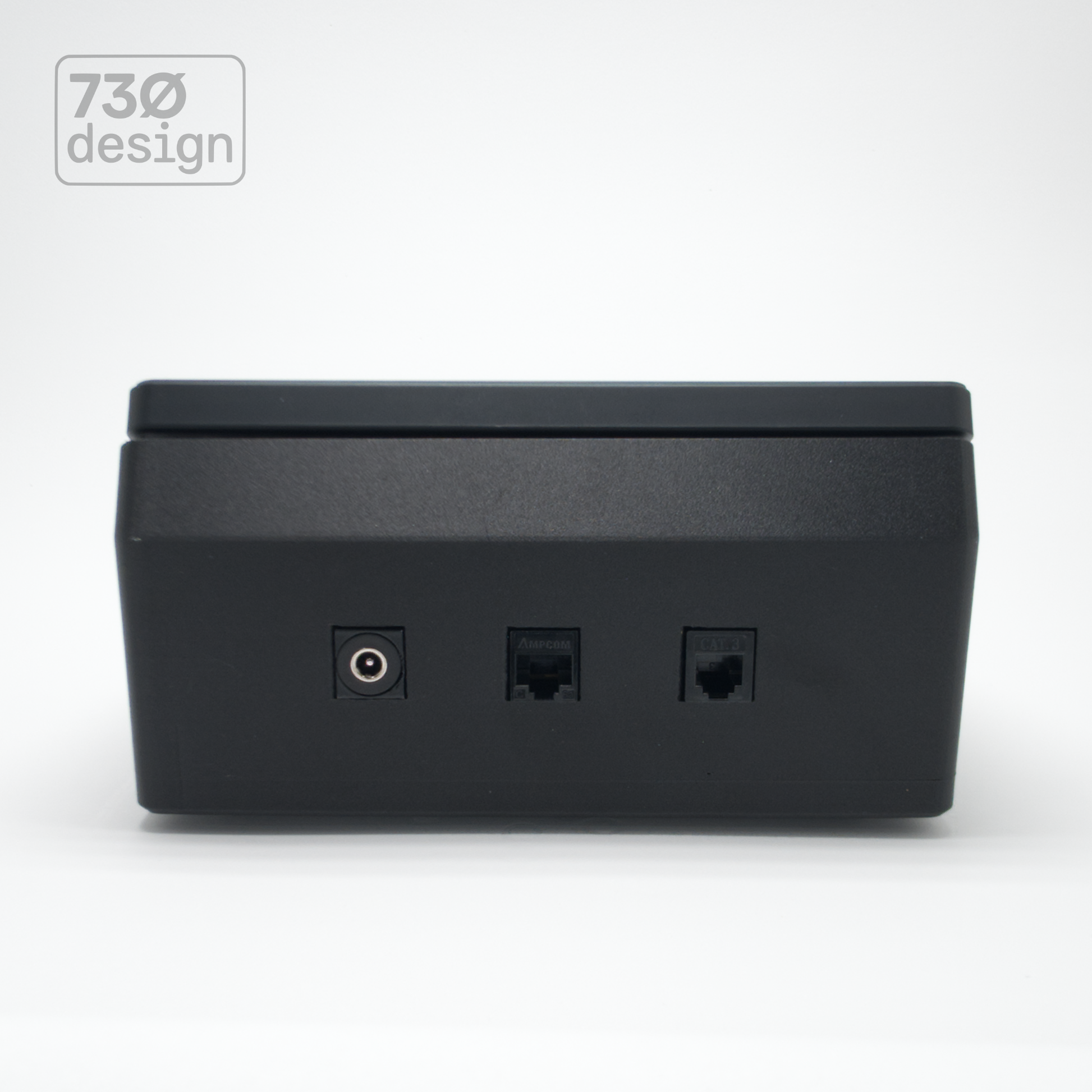

• Keystone backplane - three keystone positions on the rear, compatible with RJ45 Cat6, RJ11 Cat3, DC socket, cable grommets, and material-matched blanks. Two keystone blanks and one grommet included
• Replaceable isolation feet - high-friction contact on any worktop or surface
• SELV only - for use with Safety Extra-Low Voltage systems only

Finish Palette

ControlBase brackets are manufactured from fibre reinforced engineering composites - materials selected for dimensional stability, surface hardness, and long-term performance in permanent installation environments.

Gallery Finish - Glass Fibre Reinforced Composite
RF transparent throughout. Thermally stable under normal operating conditions. Does not flex under interaction. Finished with a satin clearcoat for a consistent, architectural-grade surface.

• Arctic - a neutral white. Sits cleanly in contemporary residential and commercial interiors.
• Luna - a considered mid-grey. Sits alongside natural materials without competing.
• Obsidian - a deep, low-reflection black. Anchors the panel on any surface.

Core Finish - Carbon Fibre Reinforced Composite
A denser material surface provides greater hardness, abrasion resistance, and resistance to chemical exposure - suited to high-wear environments and technical installations where surface durability is the priority. No clearcoat - the material texture is the finish.

• Anthracite - a dark, matte surface. The material itself is the finish.

Compatible Integrated Control Panels

Listing images show panels for reference - panels are not supplied.

Precision-matched to the Dynalite PDTS Touchscreen. Compatible with all PDTS variants.

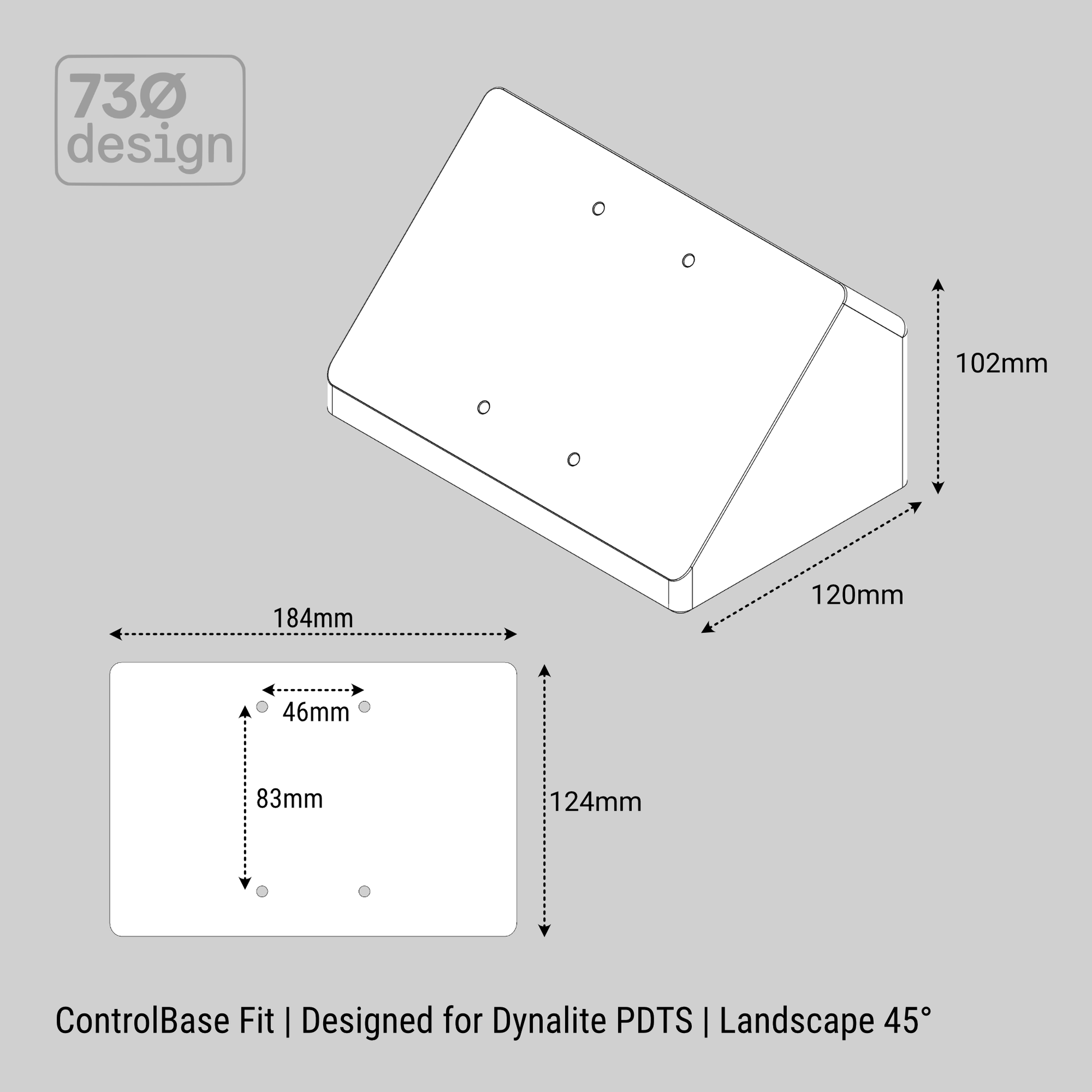

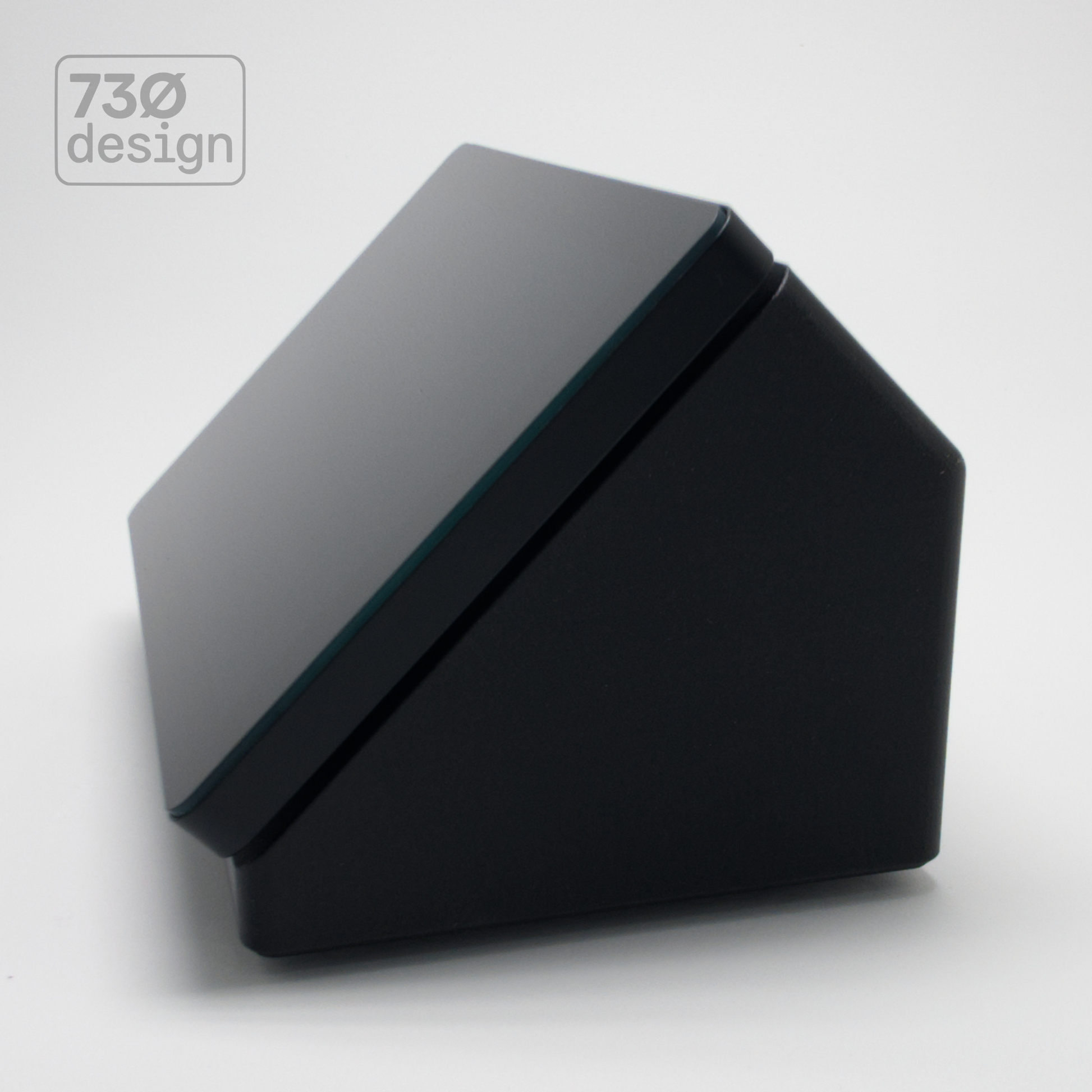

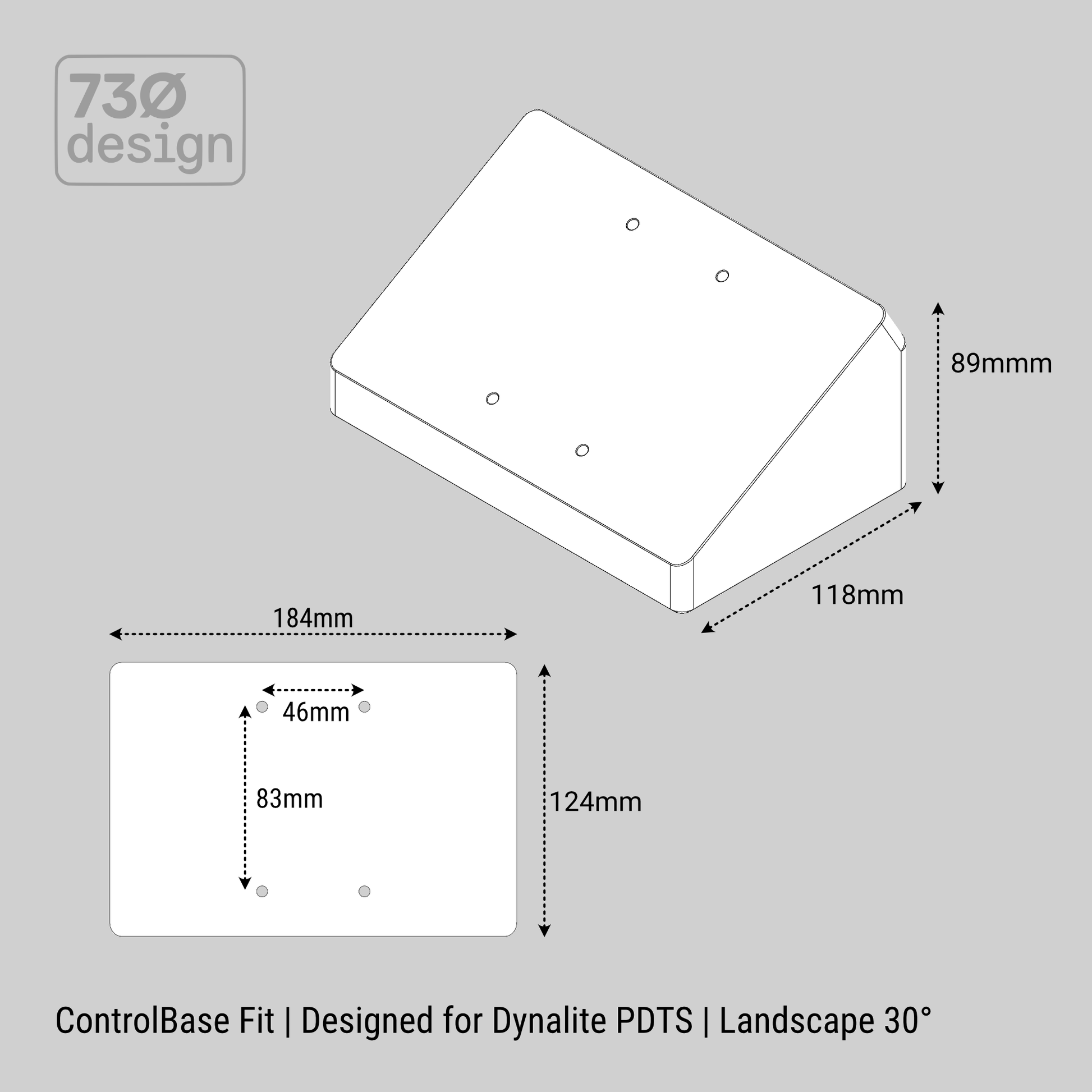

Available at 30 or 45 degrees. The 45-degree angle is suited for desk-height interaction. The 30-degree angle suits lower surface heights or installations where a shallower presentation angle is preferred.

M3.5 fixing screws are supplied as standard. 6-32 UNC thread variants are available on request.

What's Included

1 x ControlBase Fit mounting bracket - PDTS Touchscreen
4 x M3 steel fixing screws
2 x Material-matched keystone blank
1 x Keystone cable passthrough with grommet

Production

ControlBase is made to order in Melbourne. Each bracket is hand assembled and individually finished. Gallery palette variants - Arctic, Luna, and Obsidian - undergo a 48-hour clearcoat curing window before dispatch.

Other Configurations

ControlBase Fit is available as a surface-mount bracket through the ControlSurface range.

For EU square panel installations in a standard wall cutout, ControlFix provides a front-insertion mounting adapter for 70mm round cutouts - no back box required.

Also in this range:

• ControlSurface Fit | Surface Mount Designed for Dynalite PDTS Touchscreen

For thread variants, project-specific requirements, keystone accessories, or lead time enquiries, contact studio@730design.au.

Important Information

ControlBase Fit is supplied as a third-party accessory component. Compatibility is defined by manufacturer-published panel specifications. Verified dimensional drawings are provided in the product listing - confirm suitability for the intended installation before purchase. Selection, installation, and compliance with applicable standards remain the responsibility of the installer or appointed professional.

For use with SELV (Safety Extra-Low Voltage) systems only. Not an electrical enclosure. Mains power must not be connected to or routed through this product. Panel fixing screws are supplied - install and tighten with hand tools only. Do not use power tools or impact drivers on any fixing point.

For full material specifications, engineering standards, and build tolerances, visit 730design.au/pages/materials.

Some imagery on this site uses AI-generated reference material. Refer to specifications for precise installation planning.
