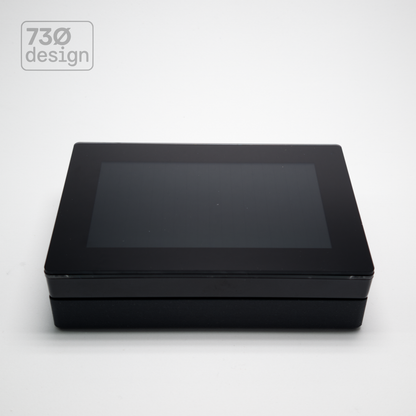

ControlSurface Fit | Surface Mount Designed for Pharos TPS5

ControlSurface Fit | Surface Mount Designed for Pharos TPS5

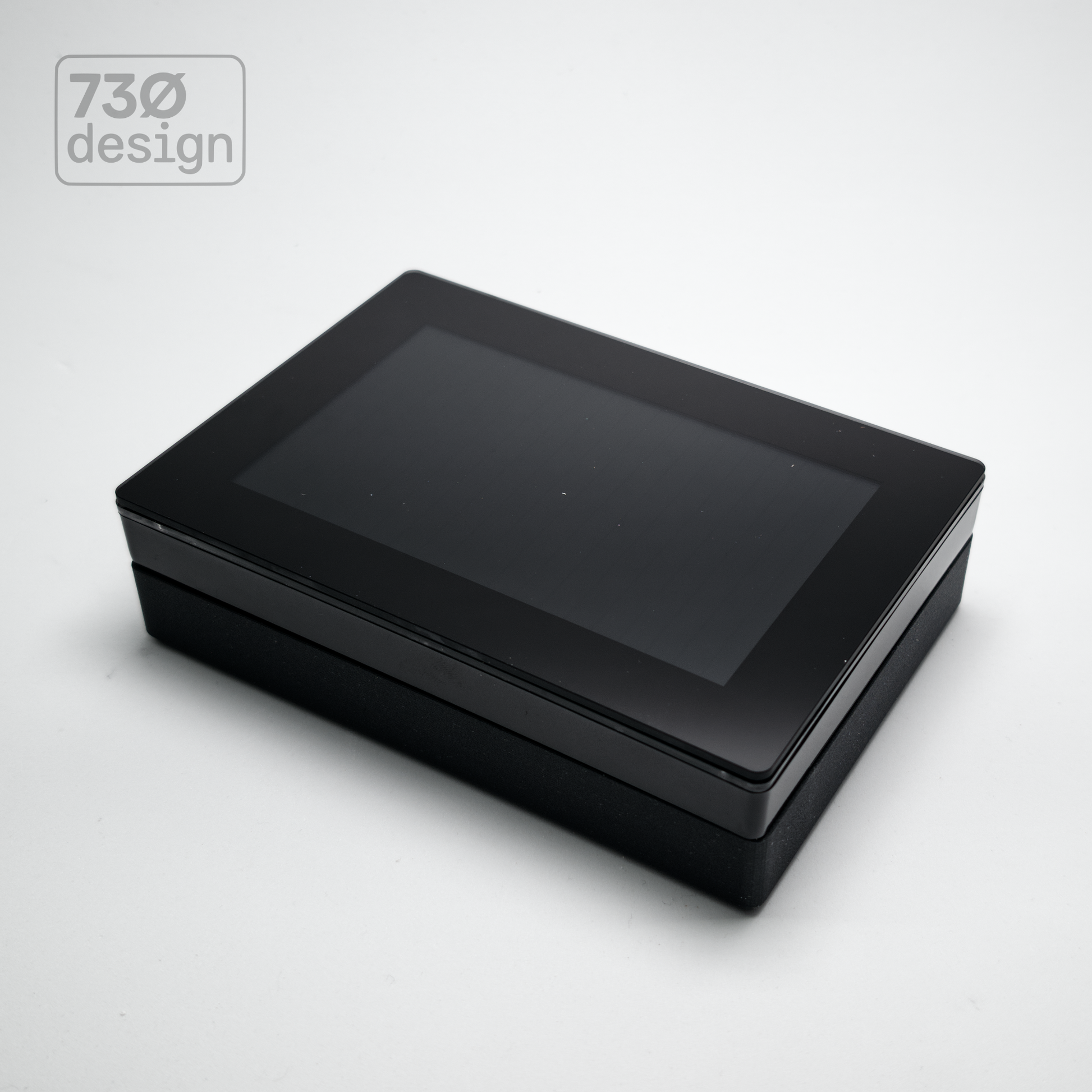

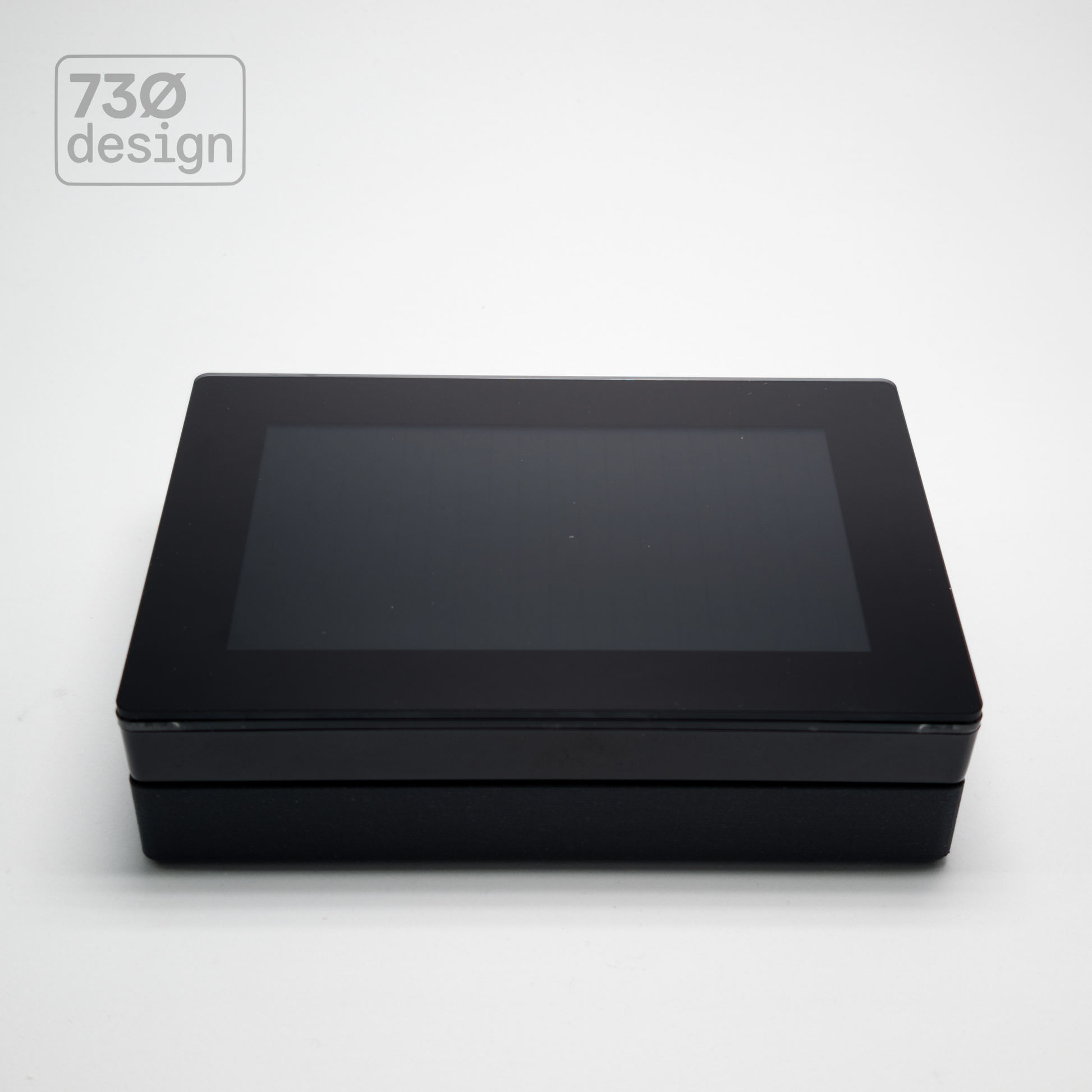

The Pharos TPS5 is designed for the wall. ControlSurface Fit mounts it directly onto joinery, stone, or timber - profile-matched to the panel, sitting as an extension of the surface rather than a utility back box.

Key Features

• Glass fibre reinforced composite body - RF transparent, dimensionally stable, does not flex under interaction
• Integrated brass threads - metal-to-metal fixing, rated for repeat-use serviceability across the full product lifecycle

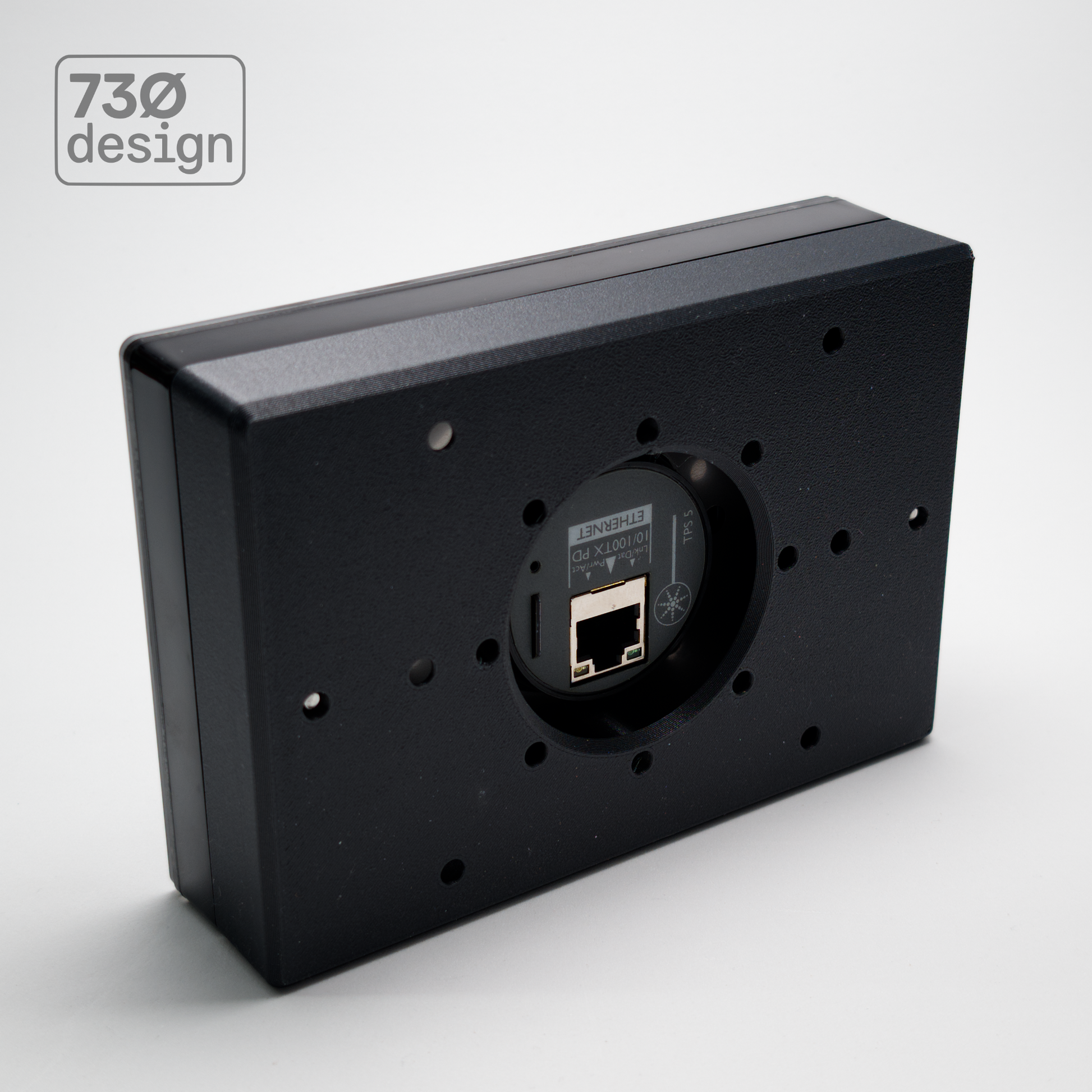

• Direct surface fixing - mounts to joinery, stone, or timber via through-hole fixing points in the bracket base. Surface fixings are not supplied - select fixings appropriate to the surface and installation context
• Profile-matched to the panel - sits as an extension of the surface rather than a utility back box. Minimal visual footprint in architectural interiors
• PoE compatible - suitable for single-cable PoE and PoE+ installations
• SELV only - for use with Safety Extra-Low Voltage systems only

Finish Palette

ControlSurface brackets are manufactured from fibre reinforced engineering composites - materials selected for dimensional stability, surface hardness, and long-term performance in permanent installation environments.

Gallery Finish - Glass Fibre Reinforced Composite
RF transparent throughout. Thermally stable under normal operating conditions. Does not flex under interaction. Finished with a satin clearcoat for a consistent, architectural-grade surface.

• Arctic - a neutral white. Sits cleanly in contemporary residential and commercial interiors.
• Luna - a considered mid-grey. Sits alongside natural materials without competing.
• Obsidian - a deep, low-reflection black. Anchors the panel on any surface.

Core Finish - Carbon Fibre Reinforced Composite
A denser material surface provides greater hardness, abrasion resistance, and resistance to chemical exposure - suited to high-wear environments and technical installations where surface durability is the priority. No clearcoat - the material texture is the finish.

• Anthracite - a dark, matte surface. The material itself is the finish.

Compatible Panels

Listing images show panels for reference - panels are not supplied.

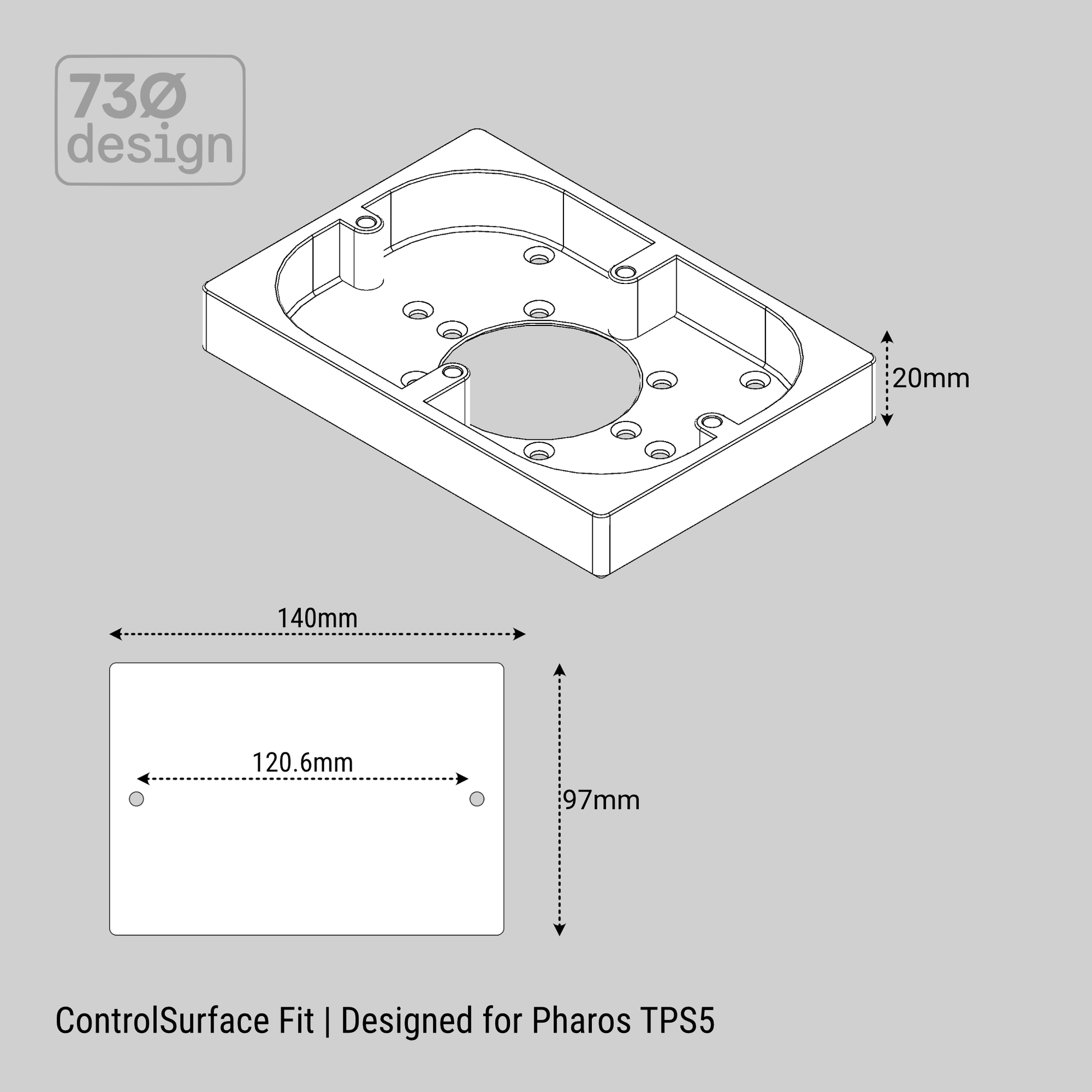

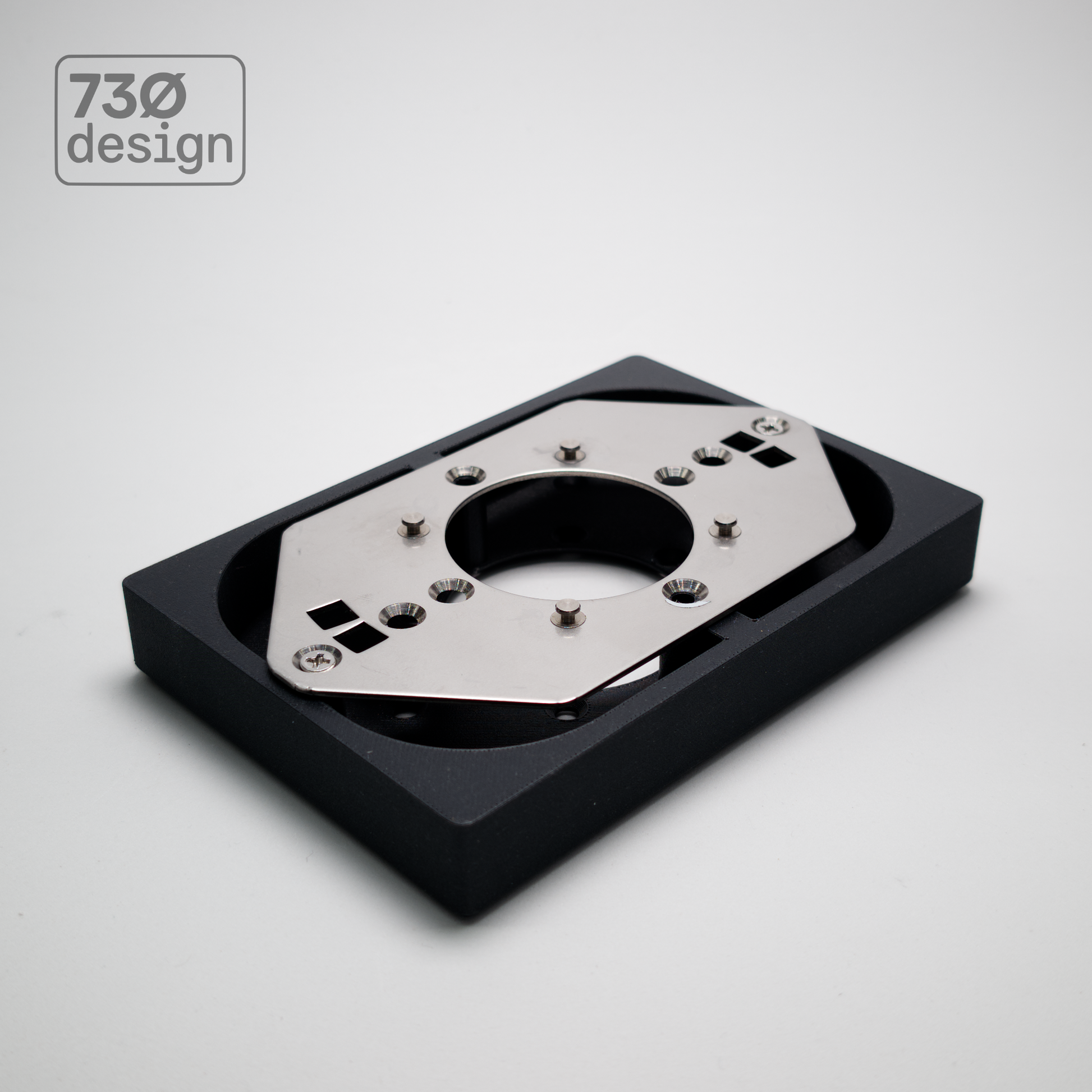

Designed to Pharos manufacturer-published specifications for the TPS5. The bracket mounts to the UMP-5 universal mounting plate supplied with the panel using 2x M3.5 fixing screws on the 120.6mm fixing centre spacing.

Verified compatible with the Pharos TPS5, Pharos XPT5 Express (Expert) Touch, and ETC Mosaic M-TS5 - all three share the same physical format and UMP-5 mounting plate standard.

M3.5 fixing screws are supplied as standard. 6-32 UNC thread variants are available on request.

What's Included

1 x ControlSurface Fit mounting bracket - TPS5
2 x M3.5 steel fixing screws

Production

ControlSurface is made to order in Melbourne. Each bracket is hand assembled and individually finished. Gallery palette variants - Arctic, Luna, and Obsidian - undergo a 48-hour clearcoat curing window before dispatch.

Other Configurations

ControlSurface Fit is available as a desktop mount through the ControlBase range.

Also in this range:

• ControlBase Fit | Desktop Mount Designed for Pharos TPS5 | Landscape 45°
• ControlBase Fit | Desktop Mount Designed for Pharos TPS5 | Portrait 45°
• ControlFix | EU Square Panel Mounting Adapter | 70mm Cutout

For thread variants, project-specific requirements, keystone accessories, or lead time enquiries, contact studio@730design.au.

Important Information

ControlSurface Fit is supplied as a third-party accessory component, not affiliated with or endorsed by Pharos Controls or Electronic Theatre Controls. Brand names are used for compatibility identification only. Compatibility is defined by manufacturer-published panel specifications. Confirm suitability for the intended installation before purchase. Surface suitability, fixing method, and structural adequacy for the intended installation are the responsibility of the installer. Selection, installation, and compliance with applicable standards remain the responsibility of the installer or appointed professional.

For use with SELV (Safety Extra-Low Voltage) systems only. Not an electrical enclosure. Mains power must not be connected to or routed through this product. Panel fixing screws are supplied - install and tighten with hand tools only. Do not use power tools or impact drivers on any fixing point. Surface fixings are not supplied - select fixings appropriate to the surface and installation context and do not overtighten.

Max operating temperature: 70°C.

For full material specifications, engineering standards, and build tolerances, visit 730design.au/pages/materials.

Some imagery on this site uses AI-generated reference material. Refer to specifications for precise installation planning.
