The LSC WPX is designed for wall installation. ControlBase Stage Recessed brings it to the desk - with the panel body recessed into the housing and only the edge of the WPX bezel frame proud of the bracket surface.

Key Features

• Carbon fibre reinforced composite body - curved edge geometry - engineered for robustness in technical and production environments. The curved profile resists impact and distributes load across the bracket edge. Does not flex under interaction
• Recessed panel geometry - the WPX body sits within the housing. Only the LSC bezel frame edge is proud of the bracket surface - presenting the panel cleanly at the operating position
• Integrated brass threads - metal-to-metal fixing, rated for repeat-use serviceability across the full product lifecycle
• Weighted base - permanently bonded internal ballast, low centre of gravity. Stable single-handed panel interaction

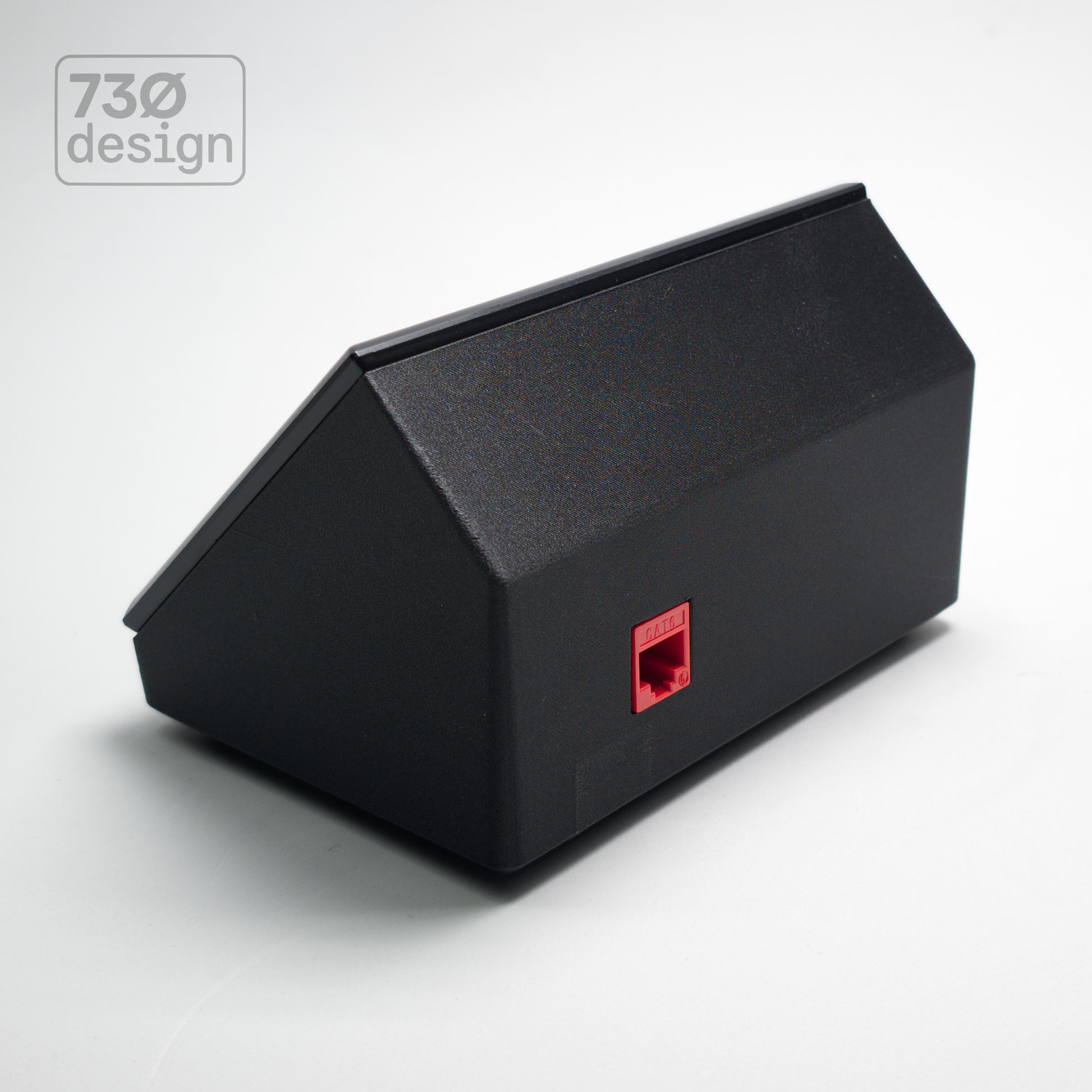

• Keystone backplane - single rear position. Accepts any standard Cat6 keystone insert for pluggable RJ45 connectivity, or a cable grommet for permanent wiring. Allows the panel to be disconnected and relocated without cutting cables. EtherCon backplane available on request

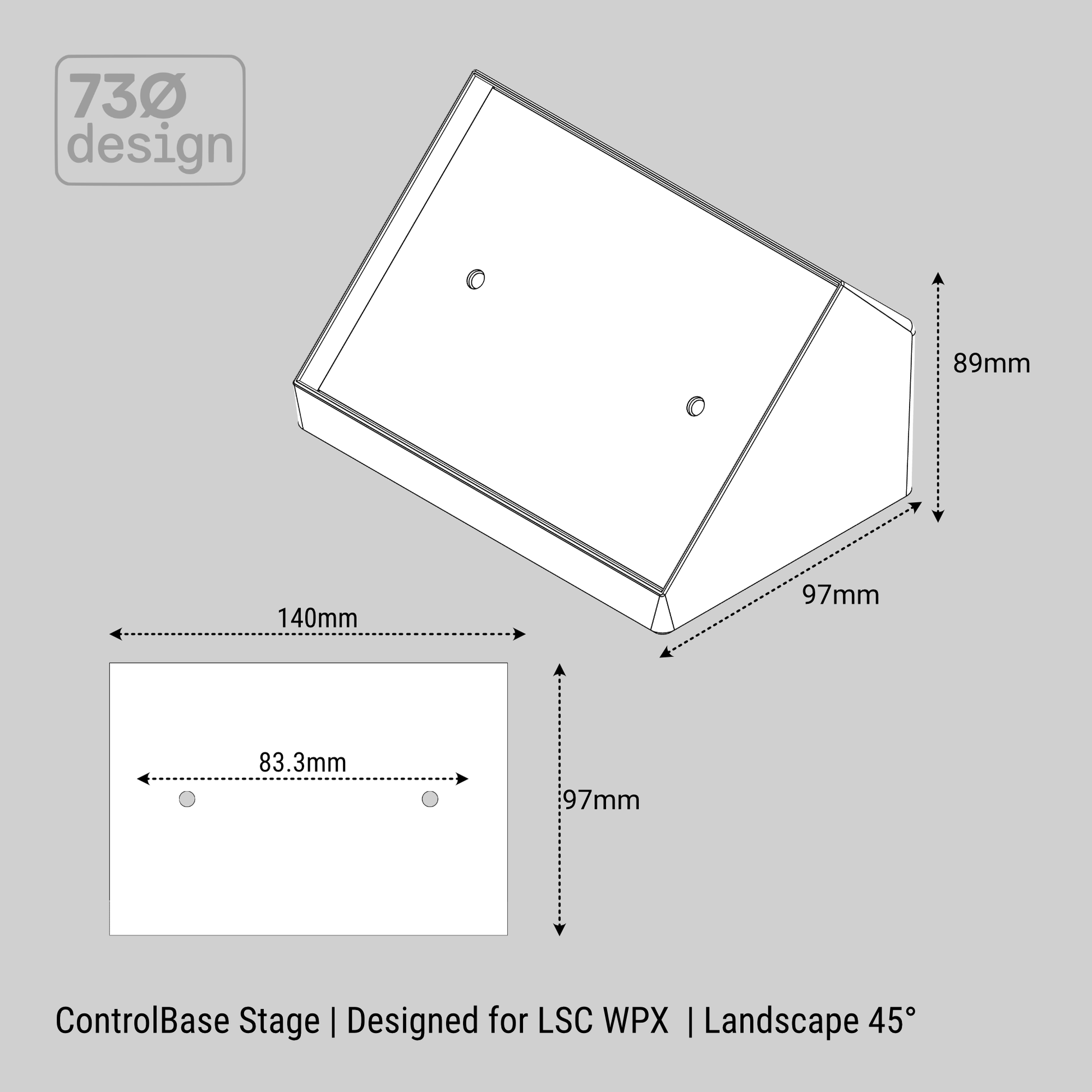

• Landscape orientation - 83.3mm fixing centres - horizontal fixing alignment to WPX landscape mounting holes
• Cable strain relief - integrated cable tie points for cable management
• Replaceable isolation feet - surface protection and vibration isolation on any worktop
• PoE compatible - suitable for single-cable PoE and PoE+ installations
• SELV only - for use with Safety Extra-Low Voltage systems only

Finish Palette

ControlBase Stage brackets are manufactured from fibre reinforced engineering composites - materials selected for dimensional stability, surface hardness, and long-term performance in high-use technical environments.

Core Finish - Carbon Fibre Reinforced Composite
A denser material surface provides greater hardness, abrasion resistance, and resistance to chemical exposure - suited to technical installations and high-wear environments. No clearcoat - the material texture is the finish.

• Anthracite - a dark, matte surface. The material itself is the finish.
• Graphite - a mid-tone grey matte surface. The material itself is the finish.

Compatible Panels

Listing images show panels for reference - panels are not supplied.

Designed to LSC Control Systems manufacturer-published specifications for the WPX.

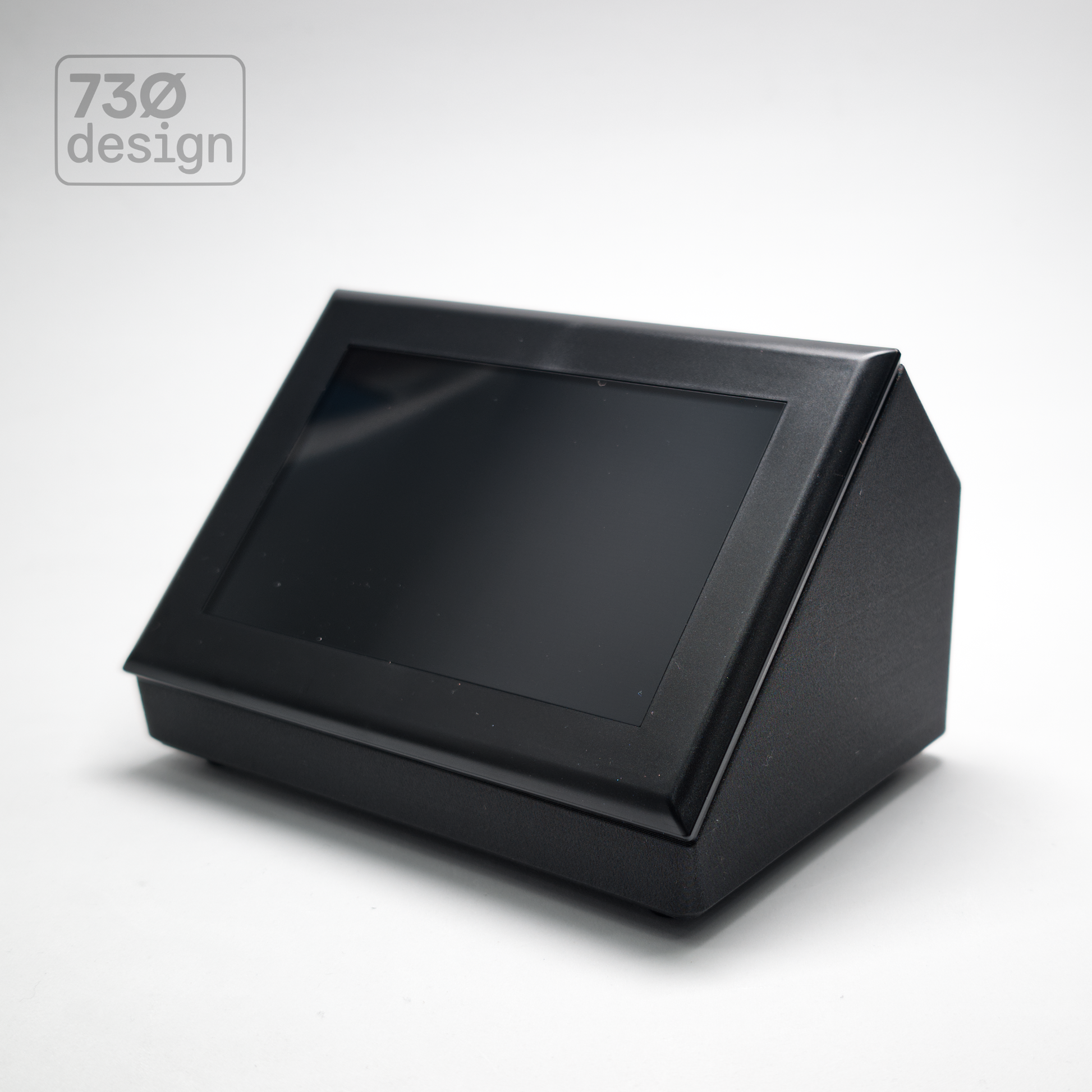

The WPX body is recessed within the housing. The bezel frame edge sits proud of the bracket surface - presenting the panel in the correct operating position with the display fully visible and accessible.

M3.5 fixing screws are supplied as standard. 6-32 UNC thread variants are available on request.

What's Included

1 x ControlBase Stage Recessed mounting bracket - WPX Landscape
2 x M3.5 steel fixing screws
1 x Keystone cable passthrough with grommet

Production

ControlBase Stage is made to order in Melbourne. Each bracket is hand assembled and individually finished. Gallery palette variants - Arctic, Luna, and Obsidian - undergo a 48-hour clearcoat curing window before dispatch.

Other Configurations

Also available in Portrait 45° - ControlBase Stage | Desktop Mount Designed for LSC WPX | Portrait 45°.

For EtherCon backplane options, thread variants, project-specific requirements, or lead time enquiries, contact studio@730design.au.

Important Information

ControlBase Stage Recessed is supplied as a third-party accessory component, not affiliated with or endorsed by LSC Control Systems. Brand names are used for compatibility identification only. Compatibility is defined by manufacturer-published panel specifications. Confirm suitability for the intended installation before purchase. Selection, installation, and compliance with applicable standards remain the responsibility of the installer or appointed professional.

For use with SELV (Safety Extra-Low Voltage) systems only. Not an electrical enclosure. Mains power must not be connected to or routed through this product. Panel fixing screws are supplied - install and tighten with hand tools only. Do not use power tools or impact drivers on any fixing point.

Max operating temperature: 70°C.

For full material specifications, engineering standards, and build tolerances, visit 730design.au/pages/materials.
